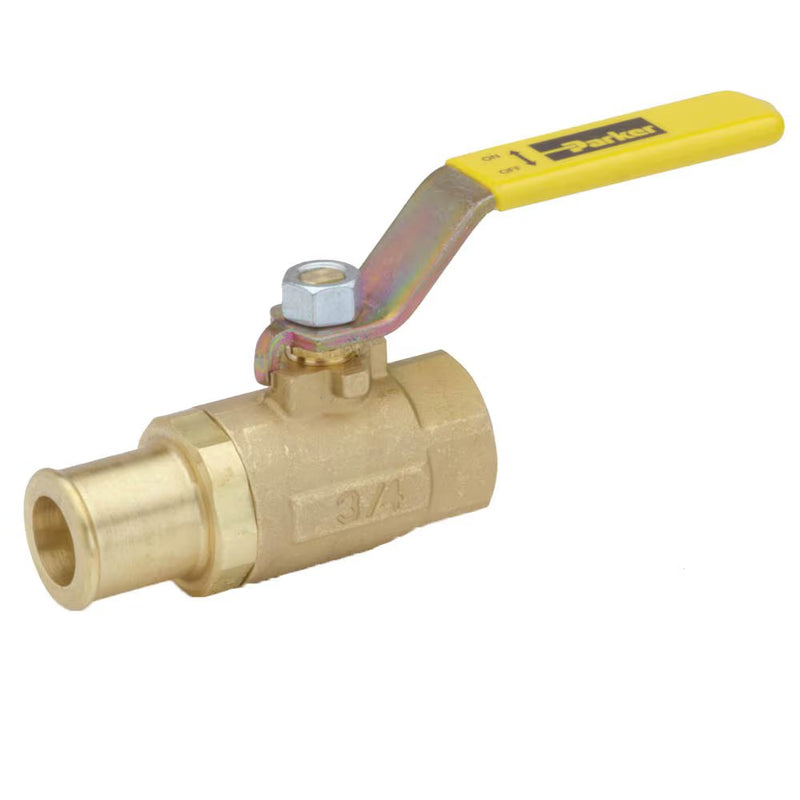

V500P-12-16HB by Parker | Ball Valves | 1" Hose Barb x 3/4" Female Pipe Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 6.25" Length | Straight | Brass

V500P-12-16HB by Parker | Ball Valves | 1" Hose Barb x 3/4" Female Pipe Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 6.25" Length | Straight | Brass

Save $13.39 Save $13.39
$70.70
$70.70 - $70.70
$70.70
$57.31
$57.31 - $57.31
$57.31

by Parker Hannifin
Ball Valves Brass Series 500HB:Brass Hose Barb Ball Valve V500P-HB
Specifications for Variant SKU: V500P-12-16HB Parker
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
Type:
  • 500HB-Female/Beaded Hose Barb
Material:
  • P-Brass
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 150 PSI (10.3 bar) WOG, Cold Non-Shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Port 1 Port 2 (PTF) Hex (B) Hex (C) H L M N Flow Diameter (D)
V500P-12-16HB 1" 3/4"* 1-1/4" 1-5/16" 3.96" 6.25" 3.41" 2.81" .685"

*PTF special extra short

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
