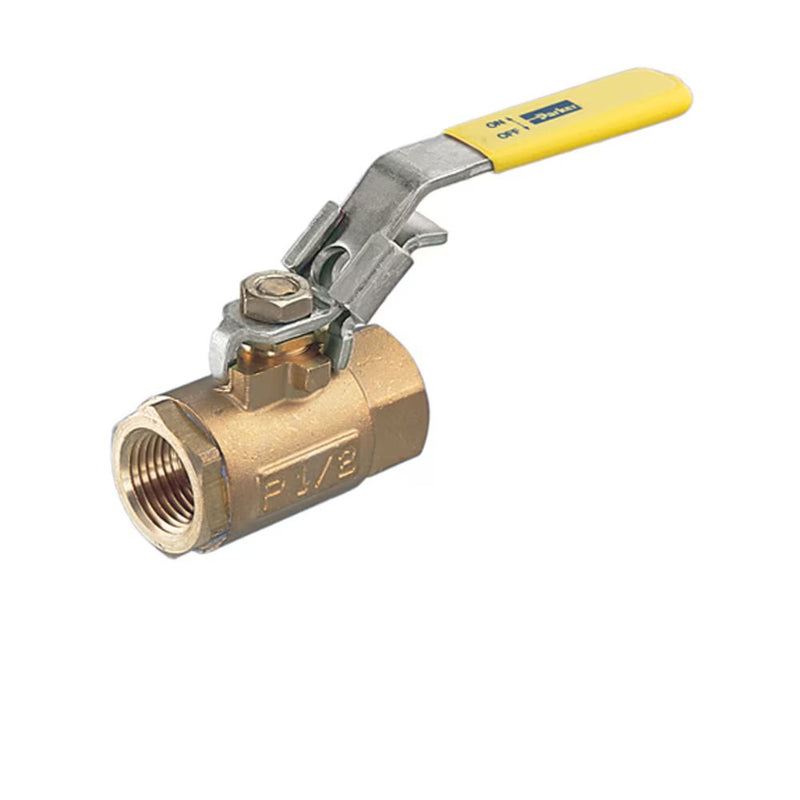

V500P-8 by Parker | Ball Valves | 1/2" Female Pipe Thread | 1-1/16" Hex (B) | 1-1/16" Hex (C) | 5.00" Length | Straight | Brass

V500P-8 by Parker | Ball Valves | 1/2" Female Pipe Thread | 1-1/16" Hex (B) | 1-1/16" Hex (C) | 5.00" Length | Straight | Brass | Pack of 10

Save $130.05 Save $130.05
$325.12
$325.12 - $325.12
$325.12
$195.07
$195.07 - $195.07
$195.07

by Parker Hannifin
Ball Valves Brass Series 500:Female-Female Pipe Ends V500P

Package Quantity: 10 Units

Specifications for Variant SKU: V500P-8 Parker | 10 |
Series: V500P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
  • VV-Valve, vented
  • VVP-Valve, vented, padlocking handle
Type:
  • 500-Female/Female PTF ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
Part Number Pipe Thread (PTF) Hex (B) Hex (C) H L M N Flow Diameter (D)
V500P-4 1/4" 15/16" 15/16" 3.96" 4.90" 2.03" 2.47" .375"
V500P-6 3/8" 15/16" 15/16" 3.96" 4.90" 2.03" 2.47" .375"
V500P-8 1/2"* 1-1/16" 1-1/16" 3.96" 5.00" 2.20" 2.58" .500"
V500P-12 3/4"** 1-1/4" 1-5/16" 3.96" 5.25" 2.42" 2.81" .685"
V500P-16 1"** 1-1/2" 1-9/16" 3.96" 5.34" 2.75" 3.08" .875"

*PTF Special Short. **PTF SPL Extra Short

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
