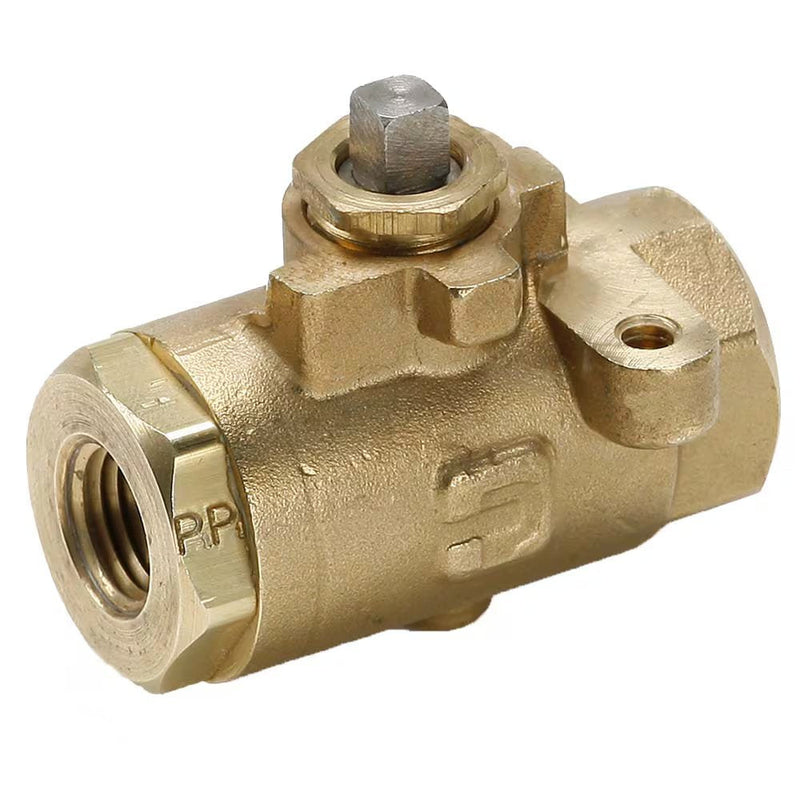

V502P-6-SUB by Parker | Rotary Actuator | 3/8" Size x 10-24 Female PNC Port | 15/16" Hex (H,I) | 2.03" Length | Straight | Brass

Save $5.91

$73.39

$73.39 - $73.39

$73.39

$67.48

$67.48 - $67.48

$67.48

by Parker Hannifin
Ball Valves Rotary Actuator Series Act:Actuator Sub-Assembly V502P-X-SUB

Quantity

Specifications for Variant SKU: V502P-6-SUB Parker
Series:	V502P Series
Shape (Orientation):	Straight
Material(s):	Brass, Chrome-Plated Brass
Seal Material(s):	PTFE
Special Properties:	Abrasion Resistance

Specification:
Product Features:	One Piece Aluminum Extrusion Body PTFE Seals Stainless Steel Shaft Self Lubricated Vane Seal Anodized Aluminum Extrusion Vane
Temperature Range:	-40° to +180° F (-40° to +82.2° C)
Pressure Range:	Up to 250 PSI (17.2 bar) Vacuum service 28 inches Hg


Part Number	Size	A UNC	B	C	D	E	F	G	Hex (H)	Hex (I)	J	K
V502P-4-SUB	1/4"	10-24	1.68"	1.15"	.495"	2.03"	.50"	1.12"	15/16"	15/16"	1.06"	1/4-18 PTF
V502P-6-SUB	3/8"	10-24	1.68"	1.15"	.495"	2.03"	.50"	1.12"	15/16"	15/16"	1.06"	3/8-18 PTF
V502P-8-SUB	1/2"	10-24	1.78"	1.19"	.565"	2.20"	.50"	1.12"	1-1/16"	1-1/16"	1.19"	1/2-14 PTF*
V502P-12-SUB	3/4"	10-24	2.09"	1.40"	.655"	2.42"	.87"	1.37"	1-5/16"	1-1/4"	1.38"	3/4-14 PTF**
V502P-16-SUB	1"	10-24	2.38"	1.54"	.785"	2.75"	.87"	1.37"	1-9/16"	1-1/2"	1.67"	1-11.5 PTF**

*PTF Special Short. **PTF Special Extra Short
