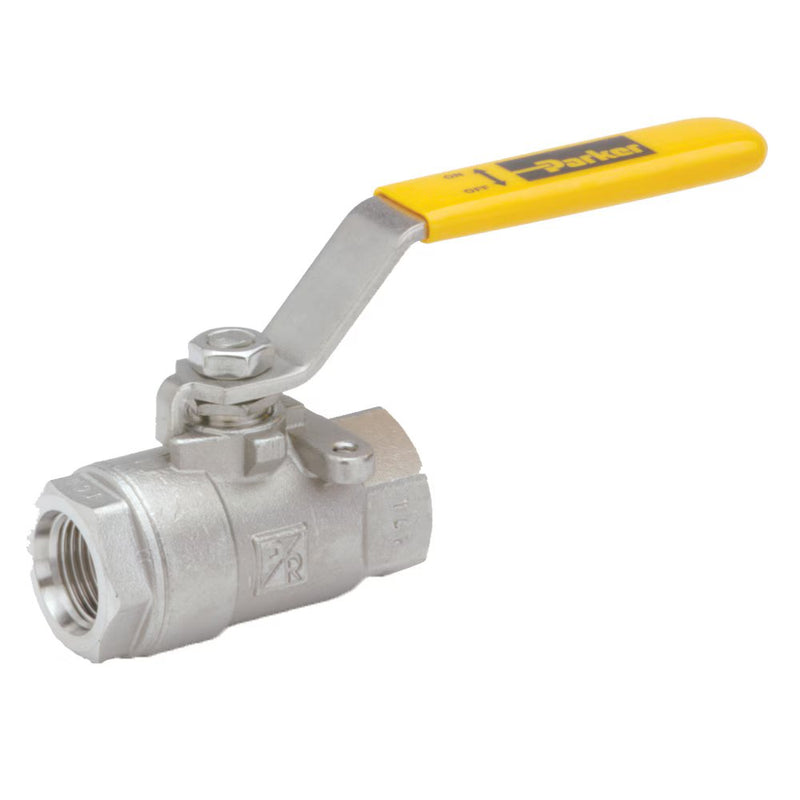

V502SS-6 by Parker | Ball Valve | 3/8" Female NPT Thread | 15/16" Hex (B/C) | 5.03" Length | Straight | Stainless Steel

Save $46.56

$116.40

$116.40 - $116.40

$116.40

$69.84

$69.84 - $69.84

$69.84

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Female Pipe Ends, Panel Mount V502SS

Specifications for Variant SKU: V502SS-6 Parker
Series:	V502SS Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Valved

Specification:
Product Features:	CF-8M Stainless Steel body Stainless Steel ball PTFE Seats/Seals Stainless Steel handle Silicone Free
Style:	V-Valve VP-Valve, Padlocking
Type:	502-Panel Mount Female/Female NPT Ports
Material:	SS – Stainless Steel
Options:	20-Short Handle 21-Oval Handle 35-Welded Retainer Nut
Temperature Range:	0° to +400° F (-17.7° to +204.4° C)
Pressure Range:	1/4” – 1”: 2000 PSI (137.8 bar) 1 1/4” – 2”: 1500 PSI (103.4 bar) Vacuum service 28 inches Hg
Approvals:	Meets material requirements of NACE MR-01-75


Part Number	Pipe Thread (NPT)	Hex (B / C)	F	G	H	Thread (I)	L	M	N	Flow Diameter (D)	Hole Diameter
V502SS-4	1/4"	15/16"	.500"	1.125"	4.00"	10-24 UNC	5.03"	2.07"	2.52"	.380"	1.125"
V502SS-6	3/8"	15/16"	.500"	1.125"	4.00"	10-24 UNC	5.03"	2.07"	2.52"	.380"	1.125"
V502SS-8	1/2"	1-1/16"	.500"	1.125"	4.00"	10-24 UNC	5.13"	2.27"	2.65"	.500	1.125"
V502SS-12	3/4"	1-3/16"	.875"	1.375"	5.00"	10-24 UNC	6.67"	3.35"	3.46"	.790"	1.500"
V502SS-16	1"	1-5/8"	.875"	1.375"	5.00"	10-24 UNC	6.77"	3.54"	3.74"	1.000"	1.500"
V502SS-20	1-1/4"	2"	1.000"	1.500"	7.00"	1/4-20 UNC	9.00"	4.00"	4.55"	1.250"	2.000"
V502SS-24	1-1/2"	2-3/8"	1.000"	1.500"	7.00"	1/4-20 UNC	7.19"	4.38"	5.42"	1.500"	2.000"
V502SS-32	2"	3"	1.000"	1.500"	7.00"	1/4-20 UNC	9.75"	5.50"	5.68"	2.000"	2.000"
