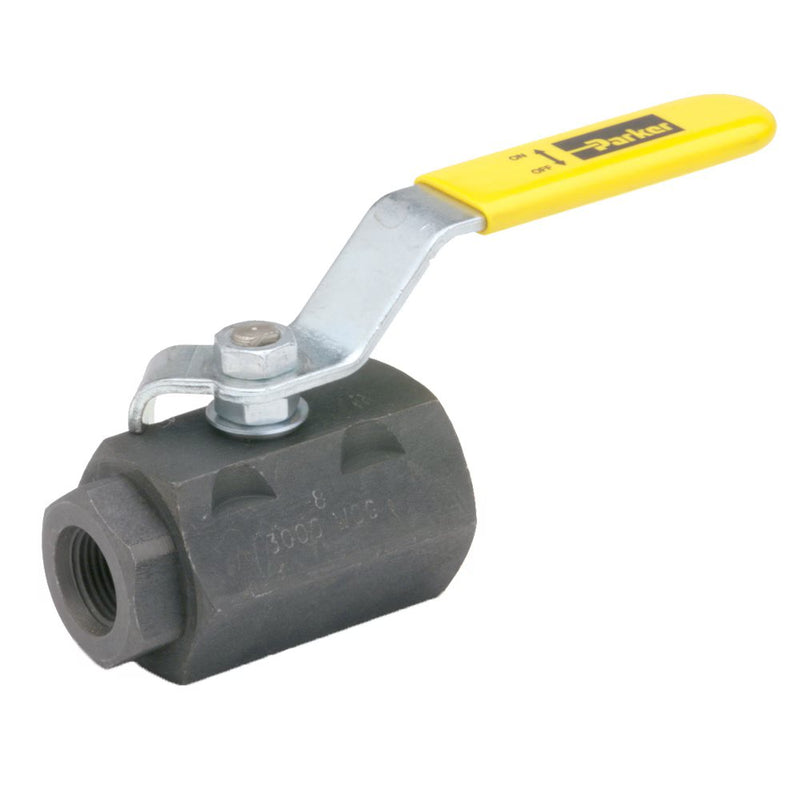

V506CS-8 by Parker | Ball Valve | 3/4" Female Thread | 1-5/8" Hex (B) | 1-5/8" (C) | 6.10" Length | Straight | Carbon Steel

Save $3.04

$83.71

$83.71 - $83.71

$83.71

$80.67

$80.67 - $80.67

$80.67

by Parker Hannifin
Ball Valves Carbon Steel Series 506CS:Female-Female SAE Straight Thread Ports V506CS

Quantity

Specifications for Variant SKU: V506CS-8 Parker
Series:	V506CS Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	506-Female/Female SAE Straight Thread Ports
Material:	CS-Carbon Steel
Temperature Range:	-20° to +425° F (-28.8° to +218.3° C)
Pressure Range:	3000 PSI (206.8 bar) Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Straight Thread	Hex (B)	Hex (C)	H	L	M	N	Flow Diameter (D)
V506CS-4	7/16"-20	1-1/16"	15/16"	3.78"	1.00"	2.00"	1.63"	.400"
V506CS-6	9/16"-18	1-1/16"	15/16"	3.78"	1.00"	2.00"	1.63"	.400"
V506CS-8	3/4"-16	1-5/8"	1-1/4"	4.78"	1.32"	2.84"	2.16"	.500"
V506CS-12	1-1/16"-12	1-7/8"	1-5/8"	4.78"	1.66"	3.71"	2.35"	.750"
V506CS-16	1-5/16"-12	2-1/2"	2-1/8"	6.10"	1.88"	4.15"	2.85"	1.000"
