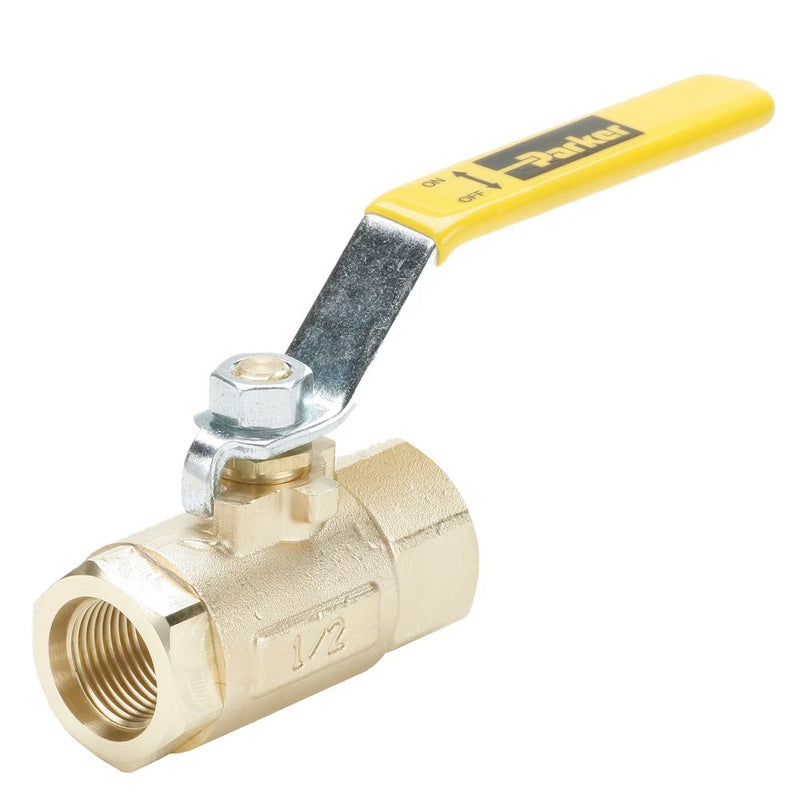

V506P-12 by Parker | Ball Valves | 1-1/16" Female Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 5.87" Length | Straight | Brass | Pack of 8

V506P-12 by Parker | Ball Valves | 1-1/16" Female Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 5.87" Length | Straight | Brass | Pack of 8

Save $540.94 Save $540.94
$1,352.35
$1,352.35 - $1,352.35
$1,352.35
$811.41
$811.41 - $811.41
$811.41

by Parker Hannifin
Ball Valves Brass Series 506:Female/Female, Straight Thread O-Ring Port V506P

Package Quantity: 8 Units

Specifications for Variant SKU: V506P-12 Parker | 8 |
Series: V506P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 506-Female/Female SAE J1926-1 Ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread Octagon (B) Octagon (C) H L M N Flow Diameter (D)
V506P-4 7/16"-20 15/16" 15/16" 3.96" 5.01" 2.20" 2.47" .375"
V506P-6 9/16"-18 15/16" 15/16" 3.96" 5.07" 2.26" 2.47" .375"
V506P-8 3/4"-16 1-1/16" 1-1/16" 3.96" 5.18" 2.42" 2.60" .500"
V506P-12 1-1/16"-12 1-1/4" 1-5/16" 3.96" 5.87" 3.46" 2.81" .685"
V506P-16 1-5/16"-12 1-1/2" 1-9/16" 3.96" 5.96" 3.68" 3.08" .875"
