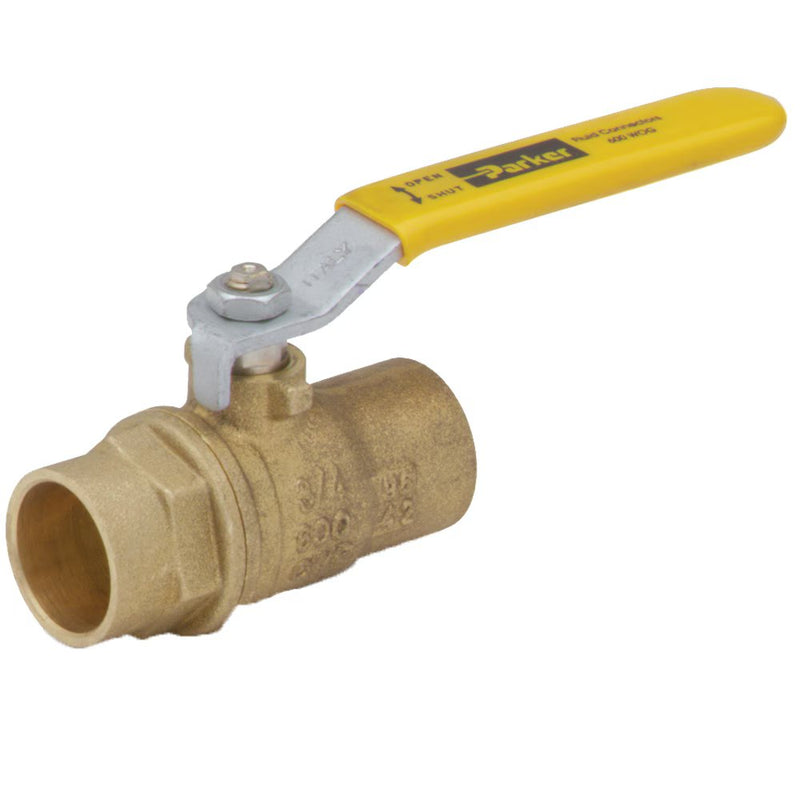

V509P-12 by Parker | Ball Valves | 3/4" Solder End | 6.10" Length | Straight | Brass | Pack of 10

Save $22.94

$281.07

$281.07 - $281.07

$281.07

$258.13

$258.13 - $258.13

$258.13

by Parker Hannifin
Ball Valves Brass Series 509:Solder Cup Ends V509P

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: V509P-12 Parker \| 10 \|
Series:	V509P Series
Shape (Orientation):	Straight
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Nylon: 0° to +350° F (-17.7° to +176.6° C)
Solder temperature not to exceed 470° F (243.3° C)

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	509-Solder Ends
Material:	P-Brass
Temperature Range:
Pressure Range:	600 WOG , Cold Non-shock Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Tube Size	E	G	H	L	M	N	Flow Diameter (D)
V509P-8	1/2"	.630"	.49"	3.94"	5.00"	2.24"	1.69"	.55"
V509P-12	3/4"	.877"	.75"	4.72"	6.10"	2.85"	1.97"	.75"
V509P-16	1"	1.128"	.90"	4.72"	6.40"	3.35"	2.13"	.94"
V509P-2	1-1/4"	1.378"	.96"	6.22"	8.13"	3.82"	3.01"	1.18"
V509P-24	1-1/2"	1.628"	1.10"	6.22"	8.46"	4.49"	3.25"	1.50"
V509P-32	2"	2.128"	1.34"	6.22"	8.94"	5.43"	3.52"	1.89"
