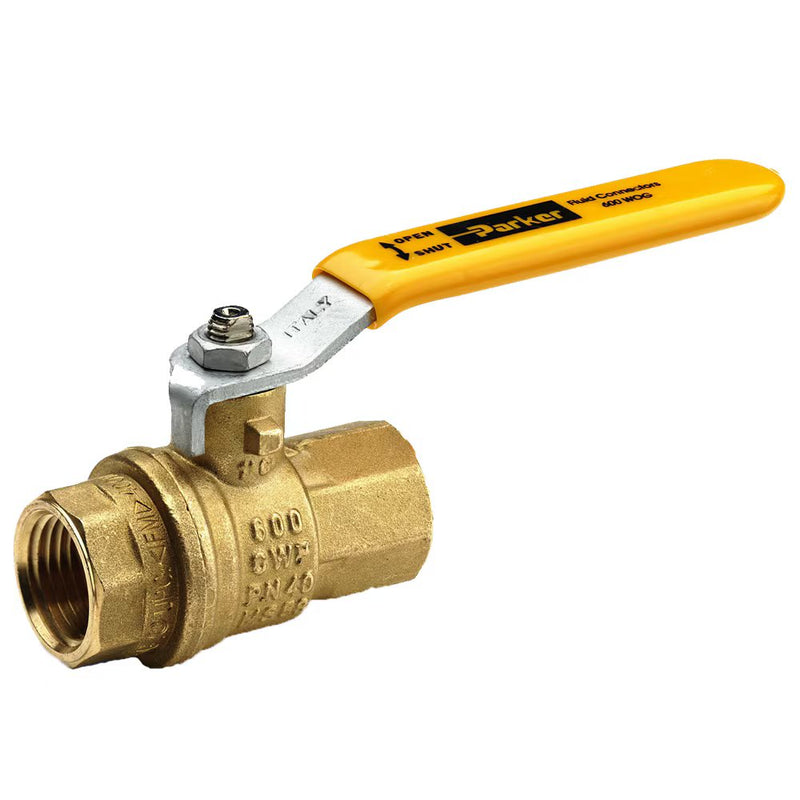

V520P-8 by Parker | Ball Valves | 1/2" Female NPT Pipe Thread | 5.10" Length | Straight | Brass

V520P-8 by Parker | Ball Valves | 1/2" Female NPT Pipe Thread | 5.10" Length | Straight | Brass | Pack of 30

Save $287.20 Save $287.20
$718.00
$718.00 - $718.00
$718.00
$430.80
$430.80 - $430.80
$430.80

by Parker Hannifin
Ball Valves Brass Series 520:Female Pipe Ends V520P

Package Quantity: 30 Units

Specifications for Variant SKU: V520P-8 Parker | 30 |
Series: V520P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon Stem O-rings
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 520-Female/Female NPT Ports
Material:
  • P-Brass
Options:
  • 04-Tee Handle
Specification:
Temperature Range: -40° to +350° F (-40° to +176.6° C)
Pressure Range:
  • 600 WOG Cold Non-shock 1/4” – 2”
  • 450 WOG, Cold Non-shock 2 1/2” – 3”
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread (NPT) Octagon (B) Octagon (C) H L M N Flow Diameter (D)
V520P-4 1/4"-18 .67" .67" 3.94" 4.83" 1.77" 1.50" .310"
V520P-6 3/8"-18 .79" .79" 3.94" 4.83" 1.77" 1.50" .400"
V520P-8 1/2"-14 .98" .98" 9.94" 5.10" 2.32" 1.69" .600"
V520P-12 3/4"-14 1.22" 1.22" 4.72" 5.98" 2.52" 1.97" .790"
V520P-16 1"-11.5 1.57" 1.57" 4.72" 6.32" 3.19" 2.13" 1.000"
V520P-20 1-1/4" 1.93" 1.93" 6.22" 8.05" 3.66" 2.82" 1.180"
V520P-24 1-1/2" 2.13" 2.13" 6.22" 8.23" 4.02" 3.06" 1.570"
V520P-32 2" 2.69" 2.69" 6.22" 8.58" 4.76" 3.33" 2.000"
V520P-40 2-1/2" 3.35" 3.35" 10.04" 13.11" 6.14" 5.20" 2.520"
V520P-48 3" 3.89" 3.89" 10.04" 13.52" 6.97" 5.51" 3.000"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
