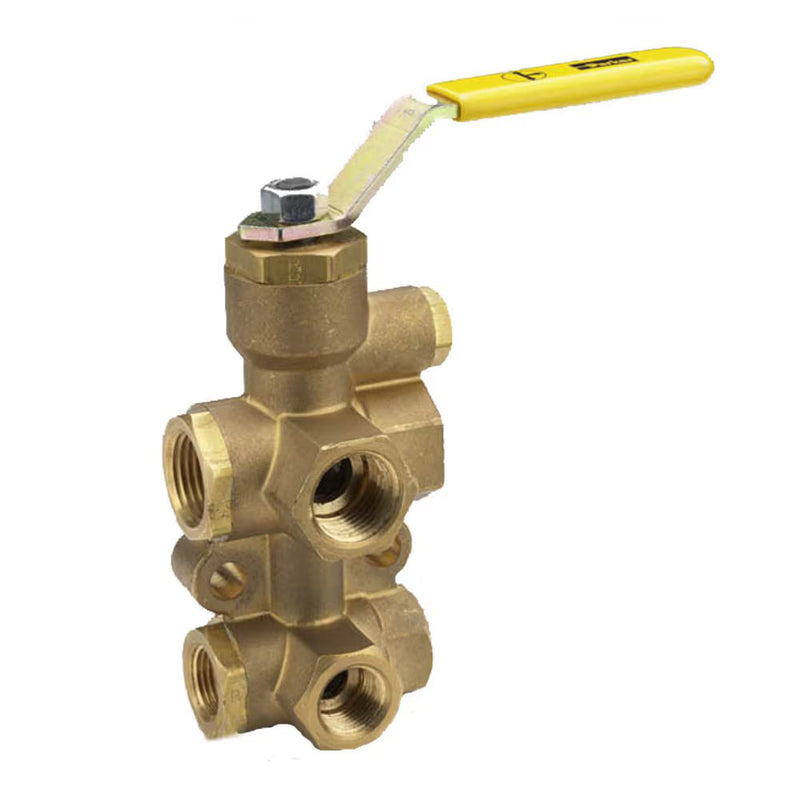

V600P-8-6 by Parker | Ball Valves | 1/2" Female Pipe Thread Top Port x 3/8" PTF Bottom Port | 1-1/16" Hex (B) | 15/16" Hex (C) | 5.43" Length | Straight | Brass

Save $193.01

$482.52

$482.52 - $482.52

$482.52

$289.51

$289.51 - $289.51

$289.51

by Parker Hannifin
Ball Valves Brass Series 600:Six Port Diversion Brass Valve V600P

Specifications for Variant SKU: V600P-8-6 Parker
Shape (Orientation):	Straight
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Fuel Grade, Valved

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Fluorocarbon O-rings Steel handle
Style:	V-Valve
Type:	600-Three Position 633-Two Position
Material:	P-Brass
Series 600 (Left) & Series 633 (Right) Handle Positions
Temperature Range:	0° to +350° F (-17.7° to +176.6° C)
Pressure Range:	150 PSI (10.3 bar) WOG, Cold Non-Shock Vacuum Service to 29 Inches Hg


Part Number	Pipe Thread Top Port SPL Short	Bottom Port (PTF)	Hex (B)	Hex (C)	D1 Flow	D2 Flow	E	H	L	M	N	P	R	S	T	U	V	W	X
V600P-8-6	1/2"	3/8"	1-1/16"	15/16"	.500"	.375"	.34"	3.96"	4.56"	2.20"	5.43"	2.03"	3.98"	2.99"	1.91"	.73"	.98"	1.12"	1.31"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
