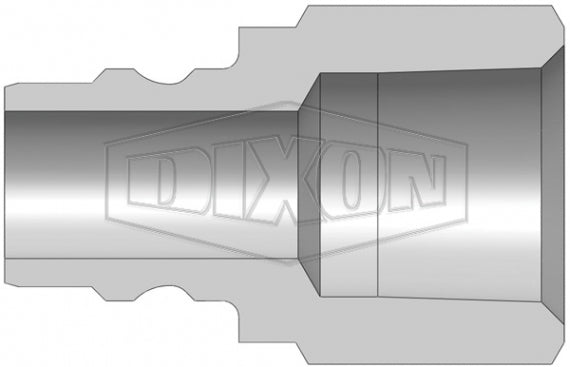

V8BF8-B-E by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 1" Female BSPP x 1" MIL-C-51234 Unvalved | Plug | Brass

Save $1.10

$27.30

$27.30 - $27.30

$27.30

$26.20

$26.20 - $26.20

$26.20

Dixon Valve & Coupling
Hydraulic Coupling: V-Series MIL-C-51234 Unvalved Plug (Female Threads)

General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications.

Quantity

Specifications for Variant SKU: V8BF8-B-E Dixon
Series:	V-Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male V-Series QD Interchange, 1in Female BSPP
Material(s):	Brass

Compatibility & Interchange:	Interchangeable to MIL-C-51234 Interchangeable with Snap-Tite H/IH Series and Faster TNV
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Rated Pressure Chart \| V-Series MIL-C-51234 (Unvalved Connected)
Body Size	Steel Coupler/Plug				Brass Coupler/Plug				316 Stainless Coupler/Plug
Body Size	Maximum Working		Burst		Maximum Working		Burst		Maximum Working		Burst
1/4"	11,000 PSI	760 bar	29,500 PSI	2,000 bar	4,000 PSI	275 bar	14,200 PSI	980 bar	10,000 PSI	670 bar	29,200 PSI	2,000 bar
3/8"	11,000 PSI	760 bar	29,900 PSI	2,000 bar	4,000 PSI	275 bar	14,500 PSI	1,000 bar	8,000 PSI	550 bar	27,900 PSI	1,900 bar
1/2"	11,000 PSI	760 bar	29,300 PSI	2,000 bar	4,000 PSI	275 bar	14,500 PSI	1,000 bar	8,000 PSI	550 bar	24,600 PSI	1,700 bar
3/4"	9,000 PSI	620 bar	19,300 PSI	1,300 bar	3,500 PSI	250 bar	11,100 PSI	750 bar	7,000 PSI	480 bar	22,600 PSI	1,500 bar
1"	6,000 PSI	400 bar	15,900 PSI	1,100 bar	3,000 PSI	200 bar	8,200 PSI	560 bar	4,000 PSI	275 bar	15,500 PSI	1,000 bar
1-1/4"	5,000 PSI	345 bar	10,000 PSI	700 bar	1,000 PSI	70 bar	4,000 PSI	275 bar	3,000 PSI	200 bar	10,000 PSI	700 bar
1-1/2"	5,000 PSI	345 bar	10,000 PSI	700 bar	1,000 PSI	70 bar	4,000 PSI	275 bar	3,000 PSI	200 bar	10,000 PSI	700 bar
2"	4,000 PSI	275 bar	8,000 PSI	550 bar	750 PSI	50 bar	2,800 PSI	190 bar	1,000 PSI	70 bar	6,000 PSI	400 bar

Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.

V-Series \| MIL-C-51234 Unvalved Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
V2F2-E	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V2F2-B-E	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V2F2-SS-E	Plug/Male	1/4"	1/4" - 18 Female NPTF	316 Stainless	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V2BF2-E	Plug/Male	1/4"	1/4" - 19 Female BSPP	Steel	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V2BF2-B-E	Plug/Male	1/4"	1/4" - 19 Female BSPP	Brass	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V2BF2-SS-E	Plug/Male	1/4"	1/4" - 19 Female BSPP	316 Stainless	1.27" (32.3mm)	0.69" (17.5mm)	5/8"
V3F3-E	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V3F3-B-E	Plug/Male	3/8"	3/8" - 18 Female NPTF	Brass	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V3F3-SS-E	Plug/Male	3/8"	3/8" - 18 Female NPTF	316 Stainless	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V3BF3-E	Plug/Male	3/8"	3/8" - 19 Female BSPP	Steel	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V3BF3-B-E	Plug/Male	3/8"	3/8" - 19 Female BSPP	Brass	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V3BF3-SS-E	Plug/Male	3/8"	3/8" - 19 Female BSPP	316 Stainless	1.41" (35.8mm)	0.90" (22.9mm)	13/16"
V4F4-E	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.72" (43.7mm)	1.10" (27.9mm)	1"
V4F4-B-E	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	1.72" (43.7mm)	1.10" (27.9mm)	1"
V4F4-SS-E	Plug/Male	1/2"	1/2" - 14 Female NPTF	316 Stainless	1.72" (43.7mm)	1.10" (27.9mm)	1"
V4BF4-E	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.72" (43.7mm)	1.10" (27.9mm)	1"
V4BF4-B-E	Plug/Male	1/2"	1/2" - 14 Female BSPP	Brass	1.72" (43.7mm)	1.10" (27.9mm)	1"
V4BF4-SS-E	Plug/Male	1/2"	1/2" - 14 Female BSPP	316 Stainless	1.72" (43.7mm)	1.10" (27.9mm)	1"
V6F6-E	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V6F6-B-E	Plug/Male	3/4"	3/4" - 14 Female NPTF	Brass	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V6F6-SS-E	Plug/Male	3/4"	3/4" - 14 Female NPTF	316 Stainless	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V6BF6-E	Plug/Male	3/4"	3/4" - 14 Female BSPP	Steel	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V6BF6-B-E	Plug/Male	3/4"	3/4" - 14 Female BSPP	Brass	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V6BF6-SS-E	Plug/Male	3/4"	3/4" - 14 Female BSPP	316 Stainless	1.86" (47.2mm)	1.31" (33.3mm)	1-3/16"
V8F8-E	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V8F8-B-E	Plug/Male	1"	1" - 11-1/2 Female NPTF	Brass	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V8F8-SS-E	Plug/Male	1"	1" - 11-1/2 Female NPTF	316 Stainless	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V8BF8-E	Plug/Male	1"	1" - 11 Female BSPP	Steel	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V8BF8-B-E	Plug/Male	1"	1" - 11 Female BSPP	Brass	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V8BF8-SS-E	Plug/Male	1"	1" - 11 Female BSPP	316 Stainless	2.08" (52.8mm)	1.65" (41.9mm)	1-1/2"
V10F10-E	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Steel	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V10F10-B-E	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Brass	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V10F10-SS-E	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	316 Stainless	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V10BF10-E	Plug/Male	1-1/4"	1-1/4" - 11 Female BSPP	Steel	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V10BF10-B-E	Plug/Male	1-1/4"	1-1/4" - 11 Female BSPP	Brass	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V10BF10-SS-E	Plug/Male	1-1/4"	1-1/4" - 11 Female BSPP	316 Stainless	2.22" (56.4mm)	2.06" (52.3mm)	1-7/8"
V12F12-E	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	2.44" (62.0mm)	2.33" (59.2mm)	2-1/8"
V12F12-B-E	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Brass	2.44" (62.0mm)	2.33" (59.2mm)	2-1/8"
V12F12-SS-E	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	316 Stainless	2.44" (62.0mm)	2.33" (59.2mm)	2-1/8"
V16F16-E	Plug/Male	2"	2" - 11-1/2 Female NPTF	Steel	2.60" (66.0mm)	3.01" (76.5mm)	2-3/4"
V16F16-B-E	Plug/Male	2"	2" - 11-1/2 Female NPTF	Brass	2.60" (66.0mm)	3.01" (76.5mm)	2-3/4"
V16F16-SS-E	Plug/Male	2"	2" - 11-1/2 Female NPTF	316 Stainless	2.60" (66.0mm)	3.01" (76.5mm)	2-3/4"

V-Series \| MIL-C-51234 Unvalved Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
2VF2-E	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
2VF2-B-E	Socket/Female	1/4"	1/4" - 18 Female NPTF	Brass	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
2VF2-SS-E	Socket/Female	1/4"	1/4" - 18 Female NPTF	316 Stainless	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
2VBF2-E	Socket/Female	1/4"	1/4" - 19 Female BSPP	Steel	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
2VBF2-B-E	Socket/Female	1/4"	1/4" - 19 Female BSPP	Brass	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
2VBF2-SS-E	Socket/Female	1/4"	1/4" - 19 Female BSPP	316 Stainless	1.36" (34.5mm)	0.99" (25.1mm)	7/8"
3VF3-E	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
3VF3-B-E	Socket/Female	3/8"	3/8" - 18 Female NPTF	Brass	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
3VF3-SS-E	Socket/Female	3/8"	3/8" - 18 Female NPTF	316 Stainless	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
3VBF3-E	Socket/Female	3/8"	3/8" - 19 Female BSPP	Steel	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
3VBF3-B-E	Socket/Female	3/8"	3/8" - 19 Female BSPP	Brass	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
3VBF3-SS-E	Socket/Female	3/8"	3/8" - 19 Female BSPP	316 Stainless	1.50" (38.1mm)	1.18" (30.0mm)	7/8"
4VF4-E	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
4VF4-B-E	Socket/Female	1/2"	1/2" - 14 Female NPTF	Brass	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
4VF4-SS-E	Socket/Female	1/2"	1/2" - 14 Female NPTF	316 Stainless	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
4VBF4-E	Socket/Female	1/2"	1/2" - 14 Female BSPP	Steel	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
4VBF4-B-E	Socket/Female	1/2"	1/2" - 14 Female BSPP	Brass	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
4VBF4-SS-E	Socket/Female	1/2"	1/2" - 14 Female BSPP	316 Stainless	1.64" (41.7mm)	1.37" (34.8mm)	1-3/16"
6VF6-E	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
6VF6-B-E	Socket/Female	3/4"	3/4" - 14 Female NPTF	Brass	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
6VF6-SS-E	Socket/Female	3/4"	3/4" - 14 Female NPTF	316 Stainless	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
6VBF6-E	Socket/Female	3/4"	3/4" - 14 Female BSPP	Steel	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
6VBF6-B-E	Socket/Female	3/4"	3/4" - 14 Female BSPP	Brass	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
6VBF6-SS-E	Socket/Female	3/4"	3/4" - 14 Female BSPP	316 Stainless	1.96" (49.8mm)	1.67" (42.4mm)	1-1/2"
8VF8-E	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
8VF8-B-E	Socket/Female	1"	1" - 11-1/2 Female NPTF	Brass	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
8VF8-SS-E	Socket/Female	1"	1" - 11-1/2 Female NPTF	316 Stainless	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
8VBF8-E	Socket/Female	1"	1" - 11 Female BSPP	Steel	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
8VBF8-B-E	Socket/Female	1"	1" - 11 Female BSPP	Brass	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
8VBF8-SS-E	Socket/Female	1"	1" - 11 Female BSPP	316 Stainless	2.10" (53.3mm)	1.99" (50.5mm)	1-13/16"
10VF10-E	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Steel	2.28" (57.9mm)	2.19" (55.6mm)	2"
10VF10-B-E	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Brass	2.28" (57.9mm)	2.19" (55.6mm)	2"
10VF10-SS-E	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	316 Stainless	2.28" (57.9mm)	2.19" (55.6mm)	2"
10VBF10-E	Socket/Female	1-1/4"	1-1/4" - 11 Female BSPP	Steel	2.28" (57.9mm)	2.19" (55.6mm)	2"
10VBF10-B-E	Socket/Female	1-1/4"	1-1/4" - 11 Female BSPP	Brass	2.28" (57.9mm)	2.19" (55.6mm)	2"
10VBF10-SS-E	Socket/Female	1-1/4"	1-1/4" - 11 Female BSPP	316 Stainless	2.28" (57.9mm)	2.19" (55.6mm)	2"
12VF12-E	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	2.57" (65.3mm)	2.74" (69.6mm)	2-1/2"
12VF12-B-E	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Brass	2.57" (65.3mm)	2.74" (69.6mm)	2-1/2"
12VF12-SS-E	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	316 Stainless	2.57" (65.3mm)	2.74" (69.6mm)	2-1/2"
16VF16-E	Socket/Female	2"	2" - 11-1/2 Female NPTF	Steel	2.48" (63.0mm)	3.56" (90.4mm)	3-1/4"
16VF16-B-E	Socket/Female	2"	2" - 11-1/2 Female NPTF	Brass	2.48" (63.0mm)	3.56" (90.4mm)	3-1/4"
16VF16-SS-E	Socket/Female	2"	2" - 11-1/2 Female NPTF	316 Stainless	2.48" (63.0mm)	3.56" (90.4mm)	3-1/4"
