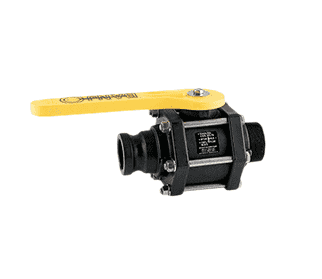

VFMT200FP Banjo Polypropylene 6 Bolt Ball Valve with "F" Adapter - Full Port - 2" Male Adapter x 2" Male NPT - Opening Thru Ball: 2" - 150 PSI

VFMT200FP by Banjo | 6 Bolt Ball Valve with "F" Adapter | Full Port | 2" Male Adapter x 2" Male NPT | Opening Thru Ball: 2" | 225 PSI | Polypropylene | Pack of 6

Save $47.23 Save $47.23
$425.07
$425.07 - $425.07
$425.07
$377.84
$377.84 - $377.84
$377.84

Banjo Valves - Bolted Ball Valves - 6 Bolt Valves - Polypropylene - Female NPT x Female NPT

Package Quantity: 6 EA

Specifications for Variant SKU: VFMT200FP Banjo | 6 |
Shape (Orientation): Straight
Ends Configuration: 2in Male Cam & Groove, 2in Male NPT
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • FKM (viton type) seals
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bush ings and seats cannot stick or bind
  • Stainless steel bolts
Other Components:
  • 6 Bolt Valve Accessories
Part Number Port Type End Type Opening Thru Ball Max PSI Pkg Qty Dimensions
A B C D E
6 Bolt Valves
V200FP Full Port 2" Female NPT x 2" Female NPT 2" 225 1 3.25" 2.38" 5.44" 9.25" 5.50"
V300 Standard Port 3" Female NPT x 3" Female NPT 2-1/2" 225 1 3.53" 2.69" 6.28" 9.25" 6.06"
V300FP Full Port 3" Female NPT x 3" Female NPT 3" 200 1 4.25" 3.25" 7.35" 9.25" 6.40"
V400 Standard Port 4" Female NPT x 4" Female NPT 3-1/2" 100 1 4.50" 3.60" 8.19" 9.25" 7.88"
6 Bolt Valves w/"F" Adapter
VFMT200FP Full Port w/ "F" Adapter 2" Male Adapter x 2" Male NPT 2" 225 1 3.38" 2.38" 5.44" 9.25" 8.30"
Replacement Parts for V200FP, VFMT200FP, VFMT200FPSH, V300, V300FP, V400
Item Part Number Description Quantity Required
1 V30151 Stem (new style for V300,V300FP & V400) 1
2 V25153 Handle 1
Not Shown VRH220K Removable Handle Kit 1
Not Shown VL25153 Locking Handle 1
8 V25160* Upper Stem Bushing 1
9 V25060* Thrust Washer 1
11 A108V 1/4" SS Lock Washer 4
12 V20019 3/8" 16 SS Hex Nut 4
15 V25163* FKM (viton type) Stem O-Ring 1
Not Shown V25271 90° Mounting Bracket Fits V200FP, V300, V300FP, V400, VFMT200FP & VFMT200FPSH 1
Not Shown V25270 Straight Mounting Bracket Fits V200FP, V300, V300FP, V400, VFMT200FP & VFMT200FPSH< 1
Replacement Parts for V200FP, VFMT200FP, VFMT200FPSH
Item Part Number Description Quantity Required
2 V25153SH Short Handle for VFMT200FPSH 1
3 V25254 Valve Body 1
4 V25255A* Valve Ball 1
5 V25256 2" End Plate Female NPT 2
5 VMT25256 2" End Plate Male NPT 1
6 V25258A* Ball Seat 2
7 V25264* FKM (viton type) Valve Body O-Ring 2
10 V25017 3.8" x 4." SS Body Bolt 6

*Valve Repair Kit contains these items

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
