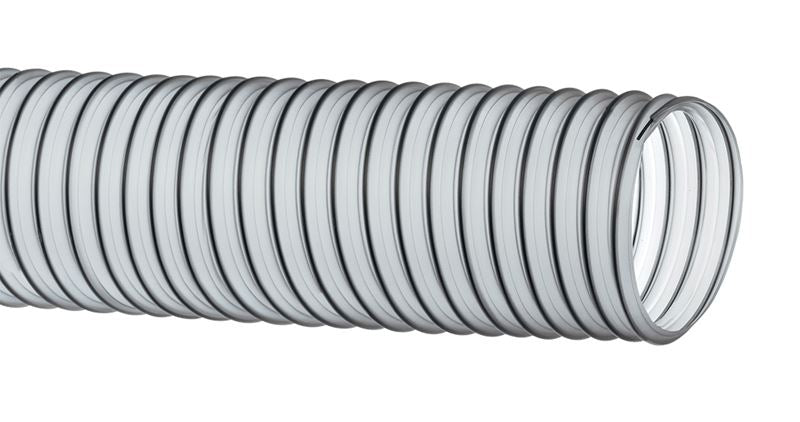

VID-CL1200X25 FLEXAIR™ by Kuriyama | Vinylduct™ Clear | VID-CL™ Series | Food Grade PVC Ducting / Material Handling Hose | 12" ID | 12.33" OD | 25ft Length

Save $417.70

$739.00

$739.00 - $739.00

$739.00

$321.30

$321.30 - $321.30

$321.30

FLEXAIR™ by Kuriyama
Vinylduct™ Clear | VID-CL™ Series | Food Grade PVC Ducting / Material Handling Hose

Designed for ducting, ventilation, and fume removal, as well as light-duty material handling applications such as dust control, food transfer, and lawn and leaf collection.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: VID-CL1200X25 Kuriyama \| 25 \|
Brand:	FLEXAIR
Series:	Vinylduct, VID-CL Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	12in
Outer Diameter:	12.33in
Tubing Construction:	PVC
Applicable Specs & Approvals:	BSE/TSE, Applicable FDA Requirements, RoHS Compliant, UL 94V-0 Flammability Rating

General Applications:
Ducting, ventilation & fume removal Dust control Food grade material handling Lawn and leaf collection Material handling - light duty
Construction:
0.025" thick PVC hose with steel wire helix.
Specifications:
BSE/TSE FDA(03) Phthalate Free RoHS UL94V-0(07)
Service Temperature Range:
-20°F (-29°C) to +180°F (+82°C)* *Actual service temperature range is application dependent
Features and Advantages:
Steel Wire Helix - Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation. Food Grade Material - Hose compiles with applicable FDA requirements. UL Information - The clear PVC plastic material has been tested and conforms to UL94V-0. Transparent Construction - "See-the-flow". Allows for visual confirmation of material flow. Phthalate Free.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed. CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.

Part Number 25ft Length	ID		OD		Working Pressure (PSI)	Vacuum Rating	Min. Bend Radius at 68°F	Compression Ratio	Weight
Part Number 25ft Length	in	mm	in	mm	at 68°F	at 68°F	in	Compression Ratio	(lbs/ft)
VID-CL200X25	2"	50.8mm	2.23"	56.6mm	28 PSI	29 in Hg	2"	3:1	0.36 lbs/ft
VID-CL250X25	2-1/2"	63.5mm	2.73"	69.3mm	24 PSI	29 in Hg	2"	3:1	0.40 lbs/ft
VID-CL300X25	3"	76.2mm	3.23"	82.0mm	20 PSI	26 in Hg	2.5"	3:1	0.44 lbs/ft
VID-CL400X25	4"	101.6mm	4.28"	108.7mm	18 PSI	22 in Hg	3.5"	3:1	0.62 lbs/ft
VID-CL500X25	5"	127.0mm	5.28"	134.1mm	16 PSI	21 in Hg	4.5"	3:1	0.65 lbs/ft
VID-CL600X25	6"	152.4mm	6.33"	160.8mm	14 PSI	19 in Hg	5.5"	3:1	0.84 lbs/ft
VID-CL800X25	8"	203.2mm	8.33"	211.6mm	10 PSI	14 in Hg	6.5"	3:1	1.40 lbs/ft
VID-CL1000X25	10"	255.0mm	10.33"	262.4mm	9 PSI	6 in Hg	7"	4:1	1.93 lbs/ft
VID-CL1200X25	12"	304.8mm	12.33"	313.2mm	8 PSI	5 in Hg	8.5"	4:1	2.26 lbs/ft
