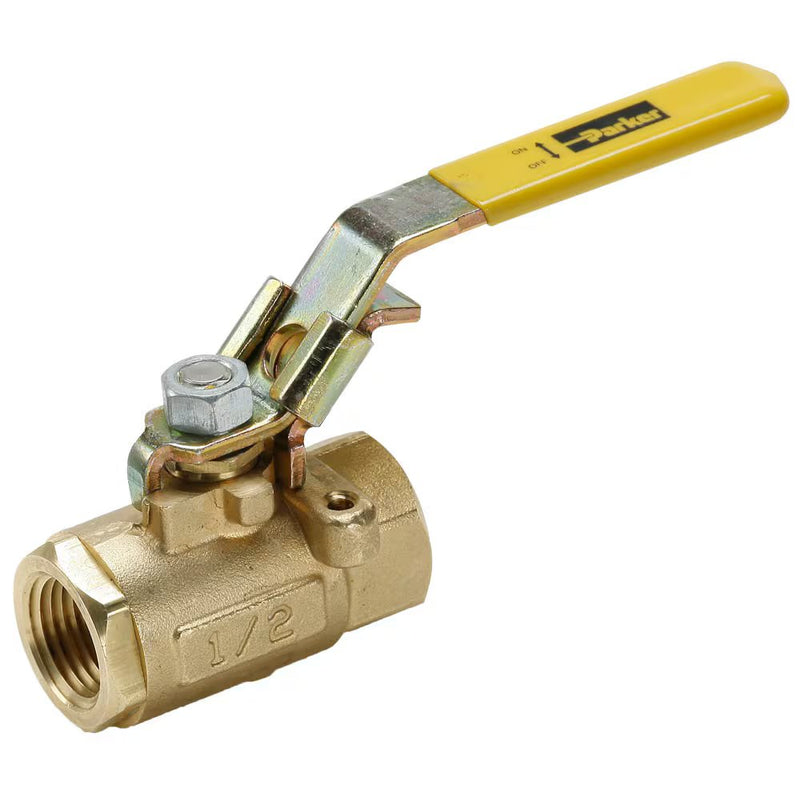

VP502P-8 by Parker | Ball Valve | 1/2" Female PTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" (C) | 5.06" Length | Straight | Brass

VP502P-8 by Parker | Ball Valve | 1/2" Female PTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" (C) | 5.06" Length | Straight | Brass

Save $27.25 Save $27.25
$68.12
$68.12 - $68.12
$68.12
$40.87
$40.87 - $40.87
$40.87

by Parker Hannifin
Ball Valves Brass Series 502:Locking Handle, Female Pipe Ends, Panel Mount VP502P
Specifications for Variant SKU: VP502P-8 Parker
Series: VP502P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
  • VV-Valve, vented
  • VVP-Valve, vented, padlocking handle
Type:
  • 502-Female/Female PTF ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
Part Number Female Pipe Thread (PTF) Hex (B) Hex (C) F G H L M N Flow Diameter (D)
VP502P-4 1/4" 15/16" 15/16" .50" 1.12" 3.96" 4.90" 2.03" 2.47" .375"
VP502P-6 3/8" 15/16" 15/16" .50" 1.12" 3.96" 4.90" 2.03" 2.47" .375"
VP502P-8 1/2"* 1-1/16" 1-1/16" .50" 1.12" 3.96" 5.06" 2.20" 2.58" .500"
VP502P-12 3/4"** 1-1/4" 1-5/16" .87" 1.37" 3.96" 5.25" 2.42" 2.81" .685"
VP502P-16 1"** 1-1/2" 1-9/16" .87" 1.37" 3.96" 5.34" 2.75" 3.08" .875"

*PTF Special Short. **PTF SPL Extra Short
