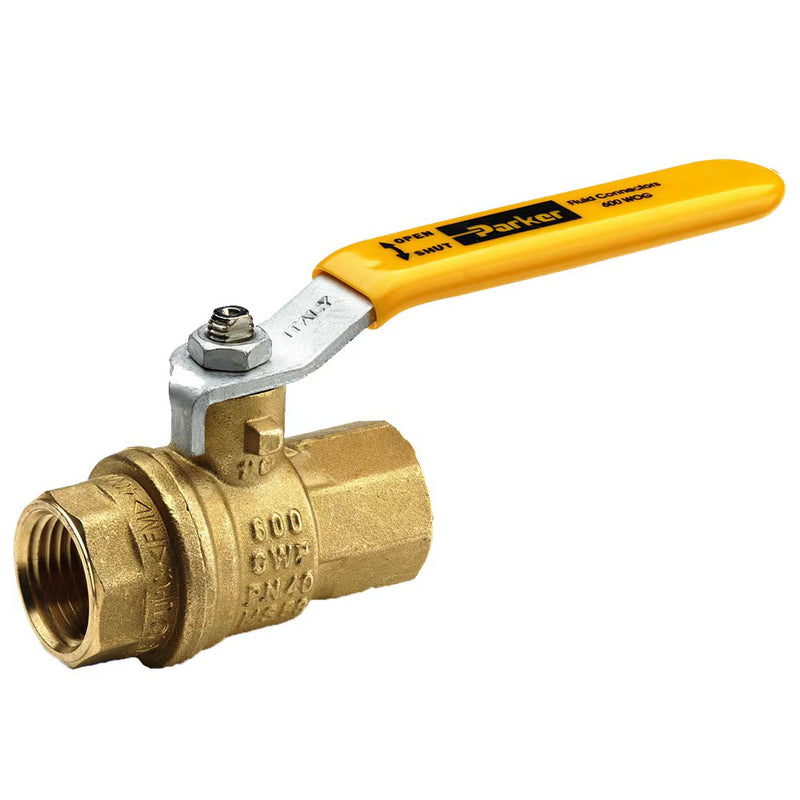

VP520P-24 by Parker | Ball Valves | 1-1/2" Female NPT Pipe Thread | 8.23" Length | Straight | Brass

VP520P-24 by Parker | Ball Valves | 1-1/2" Female NPT Pipe Thread | 8.23" Length | Straight | Brass

Save $6.72 Save $6.72
$82.09
$82.09 - $82.09
$82.09
$75.37
$75.37 - $75.37
$75.37

by Parker Hannifin
Ball Valves Brass Series 520:Locking Handle, Female Pipe Ends VP520P
Specifications for Variant SKU: VP520P-24 Parker
Series: V520P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon Stem O-rings
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 520-Female/Female NPT Ports
Material:
  • P-Brass
Options:
  • 04-Tee Handle
Specification:
Temperature Range: -40° to +350° F (-40° to +176.6° C)
Pressure Range:
  • 600 WOG Cold Non-shock 1/4” – 2”
  • 450 WOG, Cold Non-shock 2 1/2” – 3”
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread (NPT) Octagon (B) Octagon (C) H L M N Flow Diameter (D)
VP520P-4 1/4"-18 .67" .67" 3.94" 4.83" 1.77" 1.50" .310"
VP520P-6 3/8"-18 .79" .79" 3.94" 4.83" 1.77" 1.50" .400"
VP520P-8 1/2"-14 .98" .98" 9.94" 5.10" 2.32" 1.69" .600"
VP520P-12 3/4"-14 1.22" 1.22" 4.72" 5.98" 2.52" 1.97" .790"
VP520P-16 1"-11.5 1.57" 1.57" 4.72" 6.32" 3.19" 2.13" 1.000"
VP520P-20 1-1/4" 1.93" 1.93" 6.22" 8.05" 3.66" 2.82" 1.180"
VP520P-24 1-1/2" 2.13" 2.13" 6.22" 8.23" 4.02" 3.06" 1.570"
VP520P-32 2" 2.69" 2.69" 6.22" 8.58" 4.76" 3.33" 2.000"
VP520P-48 3" 3.89" 3.89" 10.04" 13.52" 6.97" 5.51" 3.000"
