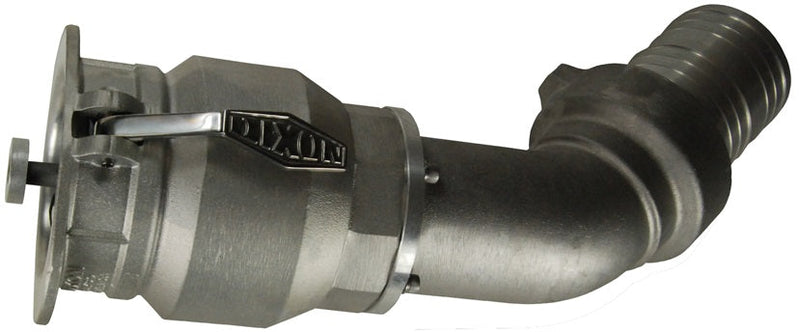

VR4040CS-ALS45 by Dixon Valve | Vapor Recovery Coupler | with Floating Bridge Poppet | 45° Elbow | 4" Coupler x 4" Swivel Hose Shank | Aluminum

Save $84.74

$824.54

$824.54 - $824.54

$824.54

$739.80

$739.80 - $739.80

$739.80

Dixon Valve
Tank Truck | Vapor Recovery Coupler

Not intended for liquid service, for vapor recovery only.

Quantity

Specifications for Variant SKU: VR4040CS-ALS45 Dixon
Brand:	Bayco
Shape (Orientation):	45 Degree
Cam Type:	Type C
Ends Configuration:	4in Female Cam & Groove, 4in Hose Barb
Material(s):	Aluminum

Features:
'Floating bridge' poppet design allows optimal flow. Machined hose shank ensures easier insertion into hose and better sealing. Durable, easy-to-couple stainless cam arms. Big wings ensure contact with air interlock button on tanker, helping prevent drive-offs. Change poppet seal without removing the coupler from the hose. Secure to hose with traditional band clamps or built in crimp collar. 4" MNPT version allows for either cam and groove or threaded flange option.
Material:
Aluminum Seal: Nitrile rubber and FKM
Safety Notes:
The Dixon replacement handle assemblies will not work on these fittings Not intended for liquid service, for vapor recovery only.

Aluminum Part Number	Coupler Size	Description
VR4040CS-AL	4"	4" Coupler x 4" Hose Shank
VR4030CS-AL45	4"	4" Coupler x 3" Hose Shank
VR4040CS-AL45	4"	4" Coupler x 4" Hose Shank
VR4040CS-ALS45	4"	4" Coupler x 4" Swivel Hose Shank
VR4040CS-4MNPT	4"	4" Coupler x 4" Male NPT
VR4030CS-SH	4"	4" Coupler x 3" Hose Shank
