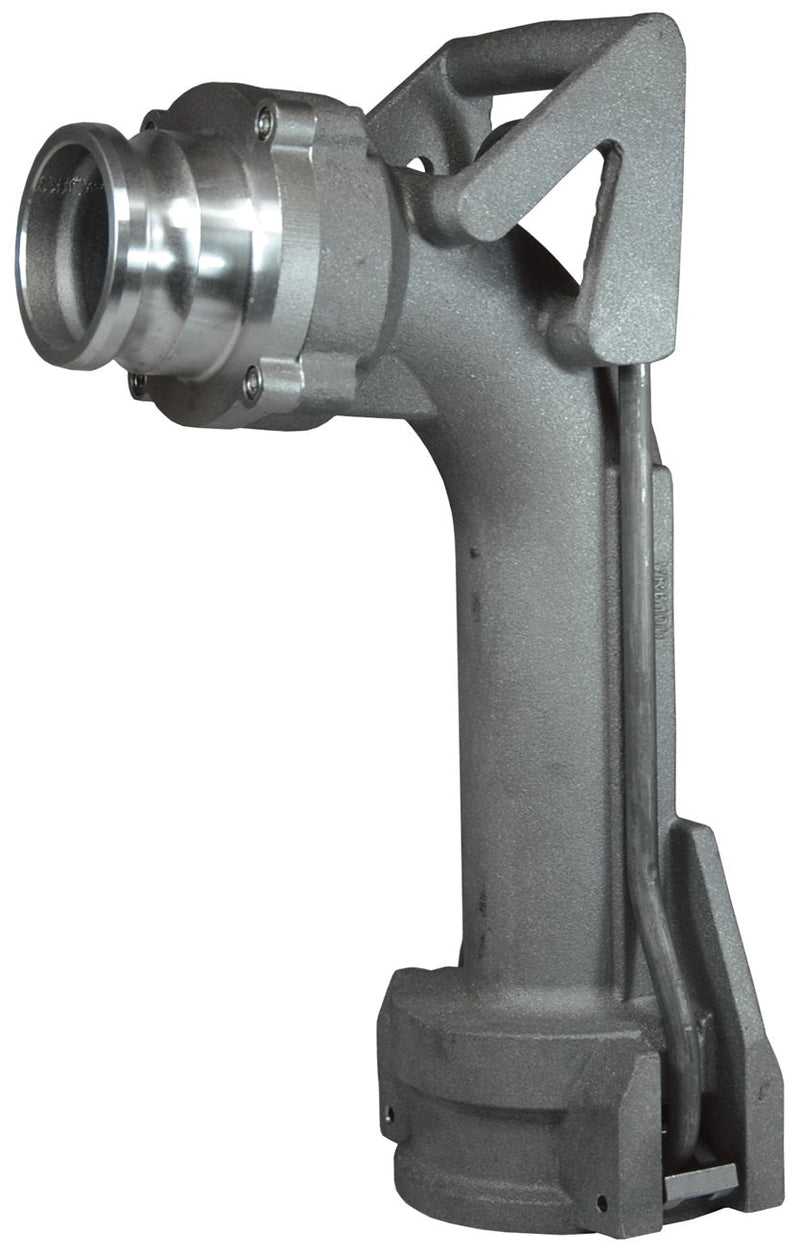

VR6100NP by Dixon Valve | Dual Point Vapor Recovery Elbow | Ball Lever | 3" Male Adapter Outlet, Without Poppet Valve | Aluminum

VR6100NP by Dixon Valve | Dual Point Vapor Recovery Elbow | Ball Lever | 3" Male Adapter Outlet, Without Poppet Valve | Aluminum

Save $50.42 Save $50.42
$490.58
$490.58 - $490.58
$490.58
$440.16
$440.16 - $440.16
$440.16

Dixon Valve
Tank Truck | Dual Point Vapor Recovery Elbow | Ball Lever

For use in two-point vapor recovery systems.
Specifications for Variant SKU: VR6100NP Dixon
Brand: Bayco
Shape (Orientation): Non-Standard Elbow
Material(s): Aluminum
Applications:
  • In many areas fuel stations are equipped with dual point tank connections, one connection is for the fuel delivery, and the other connection is for the vapor recovery connection. The vapor elbow bottom connection is connected to the fuel station on a ground tank vapor adapter and the top connection to the vapor hose, which returns the fuel vapors back to the tanker.
Features:
  • One-piece locking arms.
  • Advanced design side lever locking system.
  • Bolt on 3" male outlet included (VR6000-6), which can be rotated for extended life.
  • Lubrication fitting on locking stem.
Materials:
  • Seals: nitrile rubber.
  • Hardware: stainless steel.
  • Bronze locking arms housed in polymer bushings.
Part Number Description Ground Clearance Fuel Compatibility
VR6000NP 3" Male Adapter Outlet, Without Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6100NP 3" Male Adapter Outlet, Without Poppet Valve 12-1/2" Gasoline and diesel, up to E85 and B20 biofuels
VR6200NPBU Ball Lever Handle, Without Adapter Outlet, Without Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200NP 3" Male Adapter With Probe, Without Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200 3" Male Adapter Outlet With Probe And Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200PNP 3" Male Adapter Outlet, Ball Lever Handle, Without Poppet Valve 13-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200ANP 4" Male Adapter Outlet, Ball Lever Handle, Without Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200NPB 3" Male Coupler Outlet, Ball Lever Handle, Without Poppet Valve 10-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200NPBP 3" Male Coupler Outlet, Ball Lever Handle, Without Poppet Valve 13-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6200NPDP 4" Male Coupler Outlet, Ball Lever Handle, Without Poppet Valve 13-3/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6500 3" Male Adapter Outlet, Heavy Duty Ball Valve and Poppet Valve 11-1/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6500NP 3" Male Adapter Outlet, Heavy Duty Ball Valve, Without Poppet Valve 11-1/4" Gasoline and diesel, up to E85 and B20 biofuels
VR6500LPNP 3" Male Adapter Outlet, Heavy Duty Ball Lever Locking Handle, Without Poppet Valve 13-3/4" Gasoline and diesel, up to E85 and B20 biofuels
