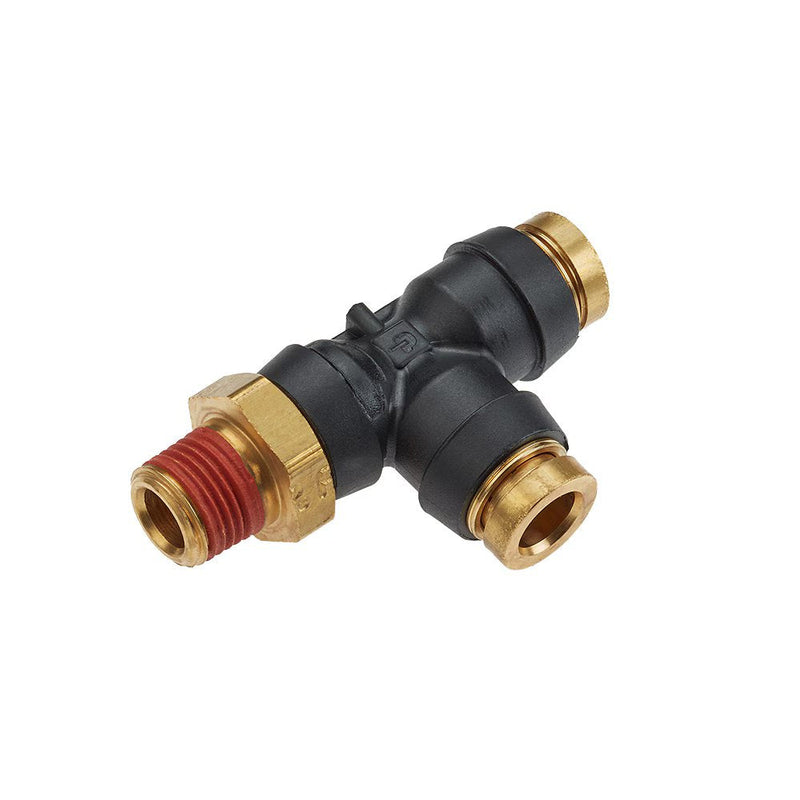

VS371PTCR-4-4 by Parker | Threaded Fitting | 1/4" Rigid Swivel Push-to-Connect x 1/4" Male NPT Pipe Thread | 9/16" Hex | 1.94" Length | Vibra-Seal | Tee | Composite | Pack of 5

VS371PTCR-4-4 by Parker | Threaded Fitting | 1/4" Rigid Swivel Push-to-Connect x 1/4" Male NPT Pipe Thread | 9/16" Hex | 1.94" Length | Vibra-Seal | Tee | Composite | Pack of 5

Save $12.00 Save $12.00
$60.27
$60.27 - $60.27
$60.27
$48.27
$48.27 - $48.27
$48.27

by Parker Hannifin
PTC & PTCR Composite Fittings:Male Run Tee Swivel VS371PTCR

Package Quantity: 5 Units

Specifications for Variant SKU: VS371PTCR-4-4 Parker | 5 |
Series: VS371PTCR Series
Shape (Orientation): Tee
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread Hex (B) L M N
VS371PTCR-4-2 1/4" 1/4" 1/8" 9/16" 1.80" .76" .76"
VS371PTCR-4-4 1/4" 1/4" 1/4" 9/16" 1.94" .76" .76"
VS371PTCR-6-4 3/8" 3/8" 1/4" 3/4" 2.25" 1.01" 1.01"
VS371PTCR-6-6 3/8" 3/8" 3/8" 3/4" 2.25" 1.01" 1.01"
VS371PTCR-8-4 1/2" 1/2" 1/4" 15/16" 2.59" 1.15" 1.15"
VS371PTCR-8-6 1/2" 1/2" 3/8" 15/16" 2.59" 1.15" 1.15"
VS371PTCR-8-8 1/2" 1/2" 1/2" 15/16" 2.78" 1.15" 1.15"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
