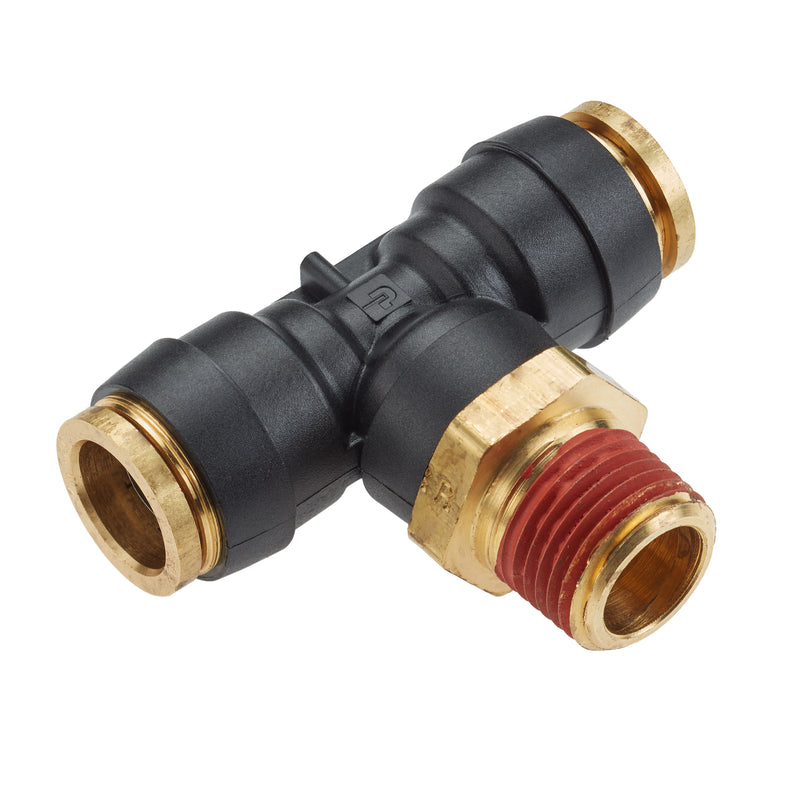

VS372PTCR-8-8 by Parker | Threaded Fitting | 1/2" Rigid Swivel x 1/2" Male NPT Pipe Threads | 1/2" Hex | 2.30" Length | Tee | Composite | Pack of 5

VS372PTCR-8-8 by Parker | Threaded Fitting | 1/2" Rigid Swivel x 1/2" Male NPT Pipe Threads | 1/2" Hex | 2.30" Length | Tee | Composite | Pack of 5

Save $64.27 Save $64.27
$160.67
$160.67 - $160.67
$160.67
$96.40
$96.40 - $96.40
$96.40

by Parker Hannifin
PTC & PTCR Composite Fittings:Male Branch Tee Swivel VS372PTCR

Package Quantity: 5 Units

Specifications for Variant SKU: VS372PTCR-8-8 Parker | 5 |
Series: VS372PTCR Series
Shape (Orientation): Tee
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Hex (B) L M N
VS372PTCR-4-2 1/4" 1/8" 1/8" 1.52" .75" 1.04"
VS372PTCR-4-4 1/4" 1/4" 9/16" 1.52" .76" 1.18"
VS372PTCR-4-6 1/4" 3/8" 11/16" 1.52" .76" 1.18"
VS372PTCR-6-2 3/8" 1/8" 3/4" 2.03" 1.01" 1.16"
VS372PTCR-6-4 3/8" 1/4" 1/4" 2.03" 1.01" 1.27"
VS372PTCR-6-6 3/8" 3/8" 1/4" 2.02" 1.01" 1.27"
VS372PTCR-6-8 3/8" 1/2" 7/8" 2.03" 1.01" 1.45"
VS372PTCR-8-4 1/2" 1/4" 1/4" 2.30" 1.15" 1.42"
VS372PTCR-8-6 1/2" 3/8" 3/8" 2.30" 1.15" 1.42"
VS372PTCR-8-8 1/2" 1/2" 1/2" 2.30" 1.15" 1.61"
VS372PTCR-10-8 5/8" 1/2" 1-1/16" 2.88" 1.44" 1.80"
VS372PTCR-6-4-6 3/8"-1/4" 3/8" 3/4" 1.91" .90/1.01" 1.23"
VS372PTCR-6-8-8 3/8"-1/2" 1/2" 15/16" 2.38" 1.15" 1.61"
