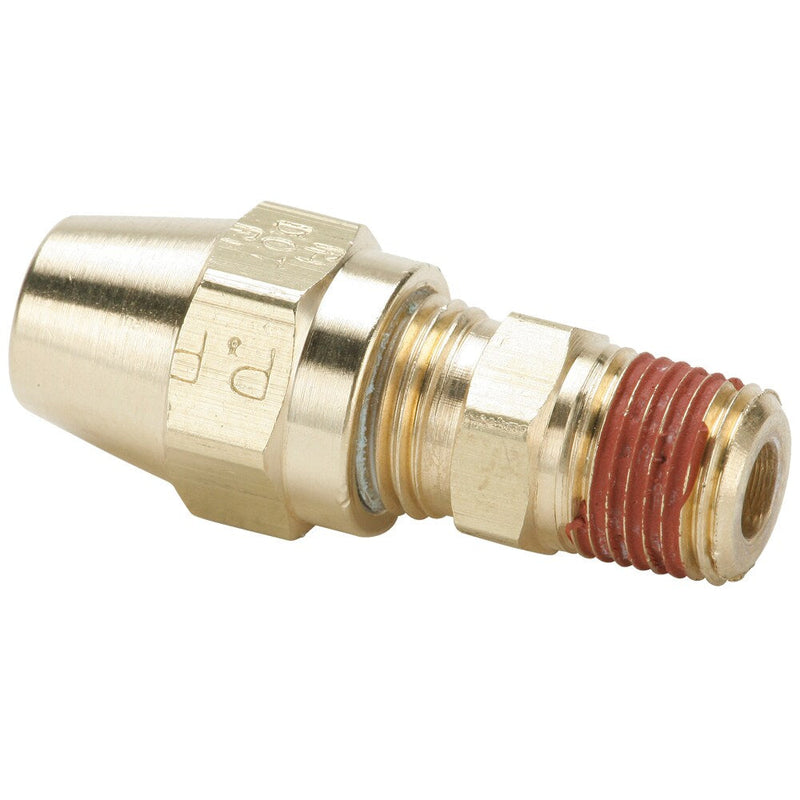

VS68AB-10-6 by Parker | Air Brake - AB Fittings | 5/8" Tube Size Connector x 3/8" Male Pipe Thread x 13/16" Thread | 13/16" Hex | 2.48" Length | Straight | Brass | Pack of 10

VS68AB-10-6 by Parker | Air Brake - AB Fittings | 5/8" Tube Size Connector x 3/8" Male Pipe Thread x 13/16" Thread | 13/16" Hex | 2.48" Length | Straight | Brass | Pack of 10

Save $15.98 Save $15.98
$175.73
$175.73 - $175.73
$175.73
$159.75
$159.75 - $159.75
$159.75

by Parker Hannifin
Air Brake – AB Fittings:Male Connector VS68AB

Package Quantity: 10 Units

Specifications for Variant SKU: VS68AB-10-6 Parker | 10 |
Series: VS68AB Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
VS68AB-4-2 1/4" 1/8" 7/16"-24 7/16" 1.47" .89" .189"
VS68AB-4-4 1/4" 1/4" 7/16"-24 9/16" 1.68" 1.10" .189"
VS68AB-4-6 1/4" 3/8" 7/16"-24 11/16" 1.72" 1.14" .189"
VS68AB-6-2 3/8" 1/8" 17/32"-24 9/16" 1.93" 1.03" .189"
VS68AB-6-4 3/8" 1/4" 17/32"-24 9/16" 2.10" 1.21" .314"
VS68AB-6-6 3/8" 3/8" 17/32"-24 11/16" 2.13" 1.24" .314"
VS68AB-6-8 3/8" 1/2" 17/32"-24 7/8" 2.32" 1.43" .314"
VS68AB-8-4 1/2" 1/4" 11/16"-20 11/16" 2.29" 1.33" .314"
VS68AB-8-6 1/2" 3/8" 11/16"-20 11/16" 2.29" 1.33" .408"
VS68AB-8-8 1/2" 1/2" 11/16"-20 7/8" 2.48" 1.52" .408"
VS68AB-10-6 5/8" 3/8" 13/16"-18 13/16" 2.48" 1.39" .408"
VS68AB-10-8 5/8" 1/8" 13/16"-18 7/8" 2.67" 1.58" .533"
VS68AB-12-8 3/4" 1/2" 1"-18 1" 2.92" 1.68" .533"
VS68AB-12-12 3/4" 3/4" 1"-18 1-1/18" 2.95" 1.71" .658"
