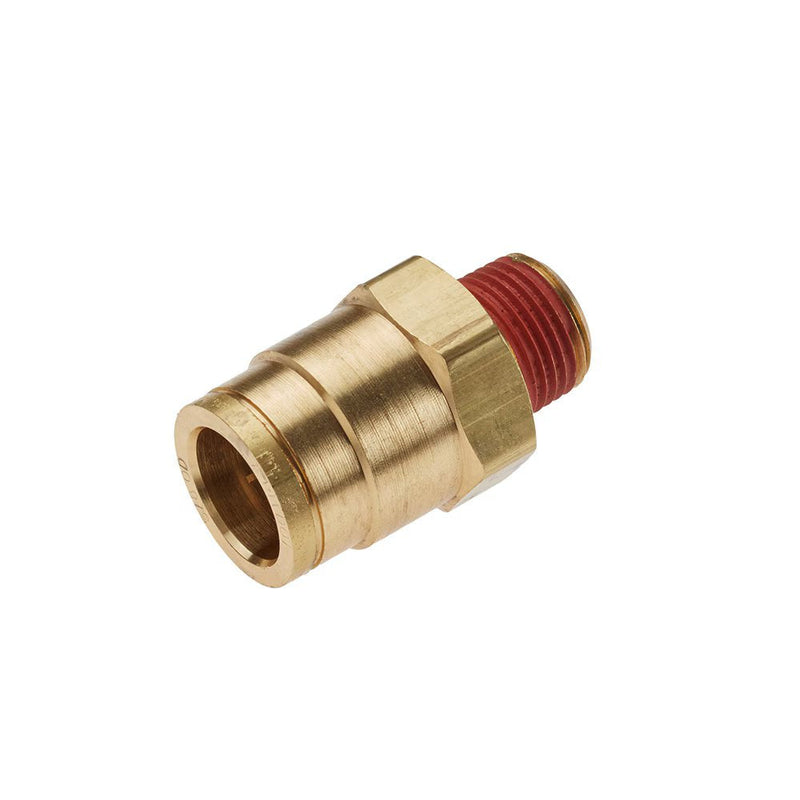

VS68PTC-6-2 by Parker | Air Brake Fitting | 3/8" Push-to-Connect x 1/8" Male NPTF Thread | Straight | Brass

VS68PTC-6-2 by Parker | Air Brake Fitting | 3/8" Push-to-Connect x 1/8" Male NPTF Thread | Straight | Brass

Save $3.84 Save $3.84
$9.60
$9.60 - $9.60
$9.60
$5.76
$5.76 - $5.76
$5.76

by Parker Hannifin
Air Brake Fitting:Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
Specifications for Variant SKU: VS68PTC-6-2 Parker
Series: VS68PTC Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
  • For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
  • Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
  • Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
  • Stainless steel tube support assures maximum flow and performance requirements of SAE J2494-3
  • Composite body - strong, lightweight, compact and impact resistant
  • Composite body can be rotated after assembly to align shaped fittings for proper orientation
  • All threads per SAE J476
  • PTC fittings reduce assembly time over compression style fittings by 90%
  • Quick connect push-in fitting for leak proof tube connections
  • D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
  • Quick connecting push-in fittings for servicing work by fleets, repair shops and farm implement dealers
Applications:
  • Air brakes
  • Air tanks
  • Air ride
  • Sliders
  • Tire inflation
  • Primary & secondary air lines
  • Cab controls
Part Number Connection 1 Size Connection 2 Size O.D. Weight
VS68PTC-4-2 1/4" 1/8" .015 Kg
VS68PTC-4-4 1/4" 1/4" .021 Kg
VS68PTC-4-6 1/4" 3/8" .031 Kg
VS68PTC-6-2 3/8" 1/8" .040 Kg
VS68PTC-6-4 3/8" 1/4" .045 Kg
VS68PTC-6-6 3/8" 3/8" .054 Kg
VS68PTC-6-8 3/8" 1/2" .083 Kg
VS68PTC-8-4 1/2" 1/4" .050 Kg
VS68PTC-8-6 1/2" 3/8" .065 Kg
VS68PTC-8-8 1/2" 1/2" .082 Kg
VS68PTC-10-6 5/8" 3/8" .082 Kg
VS68PTC-10-8 5/8" 1/2" .082 Kg
VS68PTC-12-12 3/4" 3/4" .140 Kg
VS68PTC-12-8 3/4" 1/2" .116 Kg
