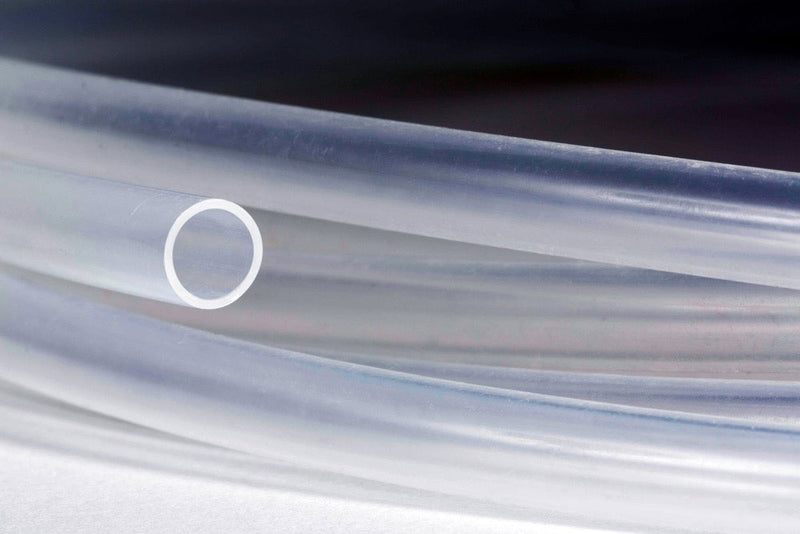

Versilon™ FBPFAF-0187-031-50 Saint Gobain 1/8" ID x 3/16" OD x .031" Wall 50' Package Length - PFA-F Beverage Dispensing Tubing

FBPFAF-0187-031-50 Versilon™ by Saint Gobain | 1/8" ID x 3/16" OD x .031" Wall | PFA-F Beverage Dispensing Tubing | 50' Package Length

Save $97.97 Save $97.97
$244.92
$244.92 - $244.92
$244.92
$146.95
$146.95 - $146.95
$146.95

Saint Gobain
Versilon™ PFA-F Beverage Dispensing Tubing

Saint-Gobain's stringent material quality control, state-of-the-art process control and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon PFA-F tubing. Versilon PFA-F tubing provides excellent chemical resistance and a good diffusion-resistance.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: FBPFAF-0187-031-50 Saint Gobain | 50 |
Brand: Versilon
Series: Versilon PFA-F
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.1875in
Tubing Construction: Perfluoroalkoxy alkane
Applicable Specs & Approvals: FDA 21 CFR Part 177.1550, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011

SPECIFICATIONS

Application: Food and Beverage Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: PFA-F
Reinforcement: N/A Cover: N/A
Temperature Range: -320°F (-196°C) to 500°F (260°C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications Regulation (EU) No 10/2011, Regulation (EC) No 1935/2004, FDA Regulation 21 CFR 177.1550
Literature: Versilon™ PFA-F Beverage Dispensing Tubing (PDF)
Other Features:
  • Excellent chemical resistance.
  • Retains higher mechanical strength at elevated temperatures compared to FEP.
  • High resistance to stress cracking.
  • Temperature resistant up to +260°C.
  • WARNING: Versilon™ PFA-F Beverage Dispensing Tubing is not intended as an implant material.
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Calculated
Burst Pressure
at 73 deg. F
(PSI)		 Calculated
Working Pressure
at 73 deg. F
(PSI)		 Length
FBPFAF-0125-031-50 1/16" 1/8" 0.031" (1/32") 1/2" 1228 PSI 307 PSI 50ft
FBPFAF-0187-031-50 1/8" 3/16" 0.031" (1/32") 1-7/64" 796 PSI 199 PSI 50ft
FBPFAF-0250-031-50 3/16" 1/4" 0.031" (1/32") 1" 572 PSI 143 PSI 50ft
FBPFAF-0250-047-50 5/32" 1/4" 0.047" (3/64") 1-21/64" 908 PSI 227 PSI 50ft
FBPFAF-0250-062-50 1/8" 1/4" 0.062" (1/16") 1/2" 1236 PSI 309 PSI 50ft
FBPFAF-0312-031-50 1/4" 5/16" 0.031" (1/32") 1-3/4" 456 PSI 114 PSI 50ft
FBPFAF-0312-062-50 3/16" 5/16" 0.062" (1/16") 1-1/2" 968 PSI 242 PSI 50ft
FBPFAF-0375-031-50 5/16" 3/8" 0.031" (1/32") 2-1/2" 400 PSI 100 PSI 50ft
FBPFAF-0375-062-50 1/4" 3/8" 0.062" (1/16") 1" 800 PSI 200 PSI 50ft
FBPFAF-0437-031-50 3/8" 7/16" 0.031" (1/32") - - - 50ft
FBPFAF-0500-031-50 7/16" 1/2" 0.031" (1/32") 4" 292 PSI 73 PSI 50ft
FBPFAF-0500-062-50 3/8" 1/2" 0.062" (1/16") 3-31/32" 576 PSI 144 PSI 50ft
FBPFAF-0562-031-50 1/2" 9/16" 0.031" (1/32") - - - 50ft
FBPFAF-0625-062-50 1/2" 5/8" 0.062" (1/16") 3" 452 PSI 113 PSI 50ft
FBPFAF-0750-062-50 5/8" 3/4" 0.062" (1/16") 8-59/64" 400 PSI 100 PSI 50ft
FBPFAF-0875-062-50 3/4" 7/8" 0.062" (1/16") - - - 50ft
FBPFAF-1000-062-50 7/8" 1" 0.062" (1/16") 15-7/8" 296 PSI 74 PSI 50ft

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
