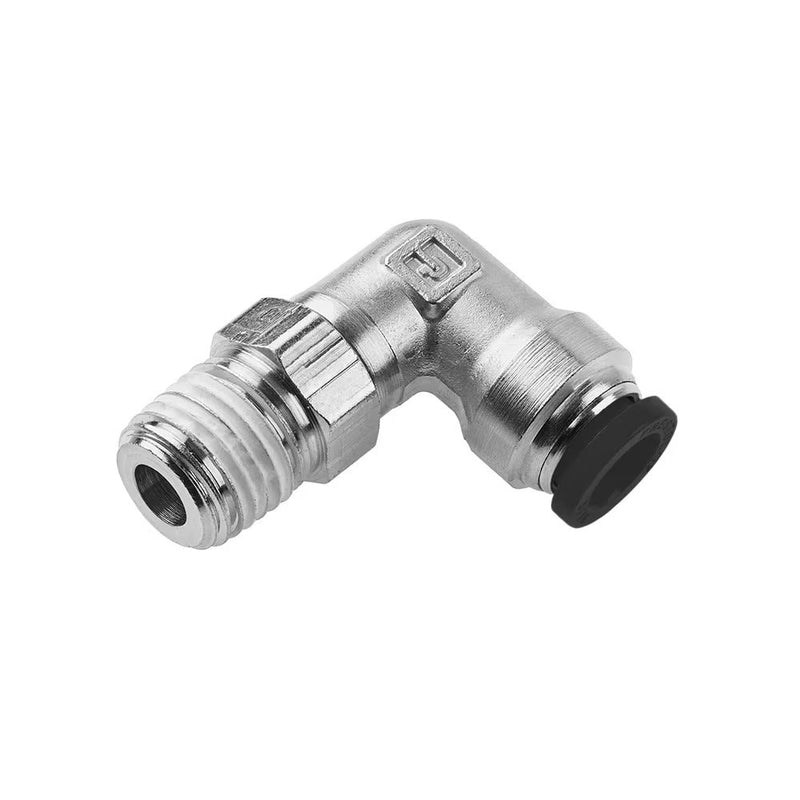

W169PLP-5/32-1 by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 5/32" Swivel x 1/16" Male NPTF Thread | 3/8" Hex | .84" Length (L) | .93" Length (N) | .160" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $52.04

$130.10

$130.10 - $130.10

$130.10

$78.06

$78.06 - $78.06

$78.06

by Parker Hannifin
Push-to-Connect Fittings:W169PLP Male Elbow Swivel 90° – NPTF

Package Quantity: 10 Units

Specifications for Variant SKU: W169PLP-5/32-1 Parker \| 10 \|
Series:	W169PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button, Swivel

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Pipe Thread NPTF	Hex (C)	L	N	Flow Diameter (D)
W169PLP-2-1	1/8"	1/16"	3/8"	.74"	.93"	.160"
W169PLP-2-2	1/8"	1/8"	7/16"	.74"	.92"	.094"
169PLP-2-0*	1/8"	10-32	3/8"	.74"	.74"	.080"
W169PLP-2-4	1/8"	1/4"	9/16"	.74"	1.10"	.094"
W169PLP-3-2	3/16"	1/8"	7/16"	.82"	.92"	.156"
W169PLP-5/32-1	5/32"	1/16"	3/8"	.84"	.93"	.160"
W169PLP-5/32-2	5/32"	1/8"	7/16"	.77"	.92"	.125"
W169PLP-5/32-4	5/32"	1/4"	9/16"	.77"	1.10"	.125"
169PLP-5/32-0*	5/32"	10-32	3/8"	.85"	.74"	.080"
W169PLP-4-1	1/4"	1/16"	3/8"	.84"	.93"	.160"
W169PLP-4-2	1/4"	1/8"	7/16"	.85"	.92"	.156"
W169PLP-4-4	1/4"	1/4"	9/16"	.85"	1.10"	.156"
W169PLP-4-6	1/4"	3/8"	11/16"	.85"	1.19"	.156"
169PLP-4-0*	1/4"	10-32	3/8"	.85"	.74"	.080"
W169PLP-5-2	5/16"	1/8"	9/16"	.97"	1.02"	.250"
W169PLP-5-4	5/16"	1/4"	9/16"	.97"	1.24"	.250"
W169PLP-6-2	3/8"	1/8"	9/16"	1.01"	1.02"	.250"
W169PLP-6-4	3/8"	1/4"	9/16"	1.01"	1.24"	.250"
W169PLP-6-6	3/8"	3/8"	11/16"	1.01"	1.24"	.250"
W169PLP-6-8	3/8"	1/2"	7/8"	1.01"	1.48"	.250"
W169PLP-8-4	1/2"	1/4"	9/16"	1.15"	1.28"	.312"
W169PLP-8-6	1/2"	3/8"	11/16"	1.15"	1.31"	.312"
W169PLP-8-8	1/2"	1/2"	7/8"	1.15"	1.52"	.312"

*10-32 seal is neoprene
