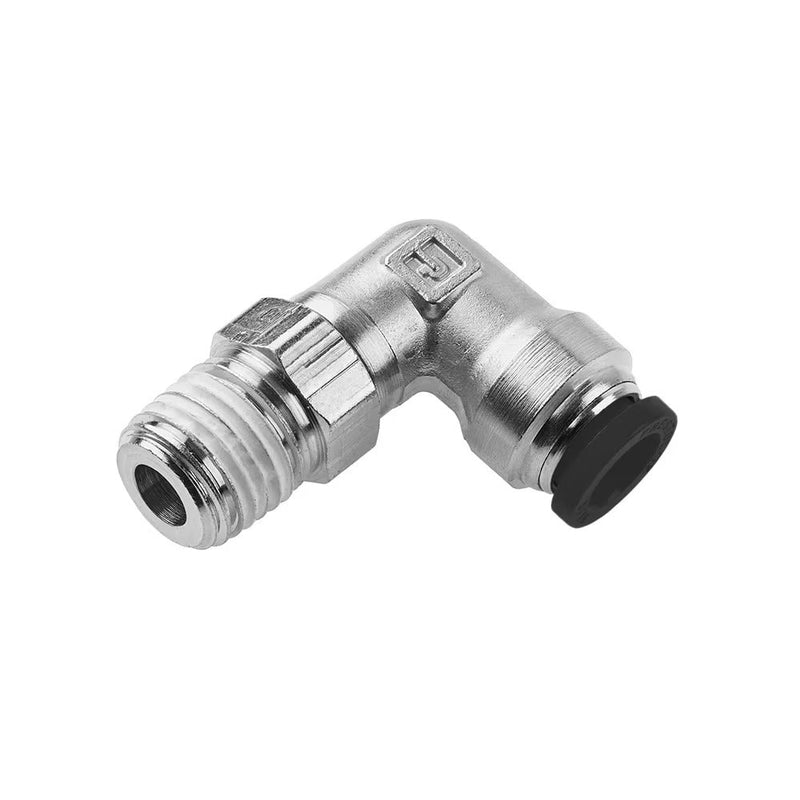

W169PLPNS-5-2 by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 5/16" Tube x 1/8" Male NPTF Thread | .97" Length (L) | .75" Length (N) | .234" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $6.27

$68.98

$68.98 - $68.98

$68.98

$62.71

$62.71 - $62.71

$62.71

by Parker Hannifin
Push-to-Connect Fittings:W169PLPNS Male Elbow 90° – NPTF

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: W169PLPNS-5-2 Parker \| 10 \|
Series:	W169PLPNS Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Pipe Thread NPFT	L	N	Flow Diameter (D)
W169PLPNS-2-2	1/8"	1/8"	.74"	.67"	.094"
W169PLPNS-5/32-2	5/32"	1/8"	.77"	.67"	.125"
W169PLPNS-5/32-4	5/32"	1/4"	.77"	.87"	.125"
W169PLPNS-4-2	1/4"	1/8"	.85"	.67"	.188"
W169PLPNS-4-4	1/4"	1/4"	.85"	.87"	.188"
W169PLPNS-5-2	5/16"	1/8"	.97"	.75"	.234"
W169PLPNS-5-4	5/16"	1/4"	.97"	.94"	.250"
W169PLPNS-6-4	3/8"	1/4"	1.01"	.94"	.312"
W169PLPNS-6-6	3/8"	3/8"	1.01"	1.01"	.312"
W169PLPNS-6-8	3/8"	1/2"	1.01"	1.27"	.312"
W169PLPNS-8-6	1/2"	3/8"	1.15"	1.00"	.375"
W169PLPNS-8-8	1/2"	1/2"	1.15"	1.27"	.375"
169PLPNS-5/32-4LT	5/32"	1/4-28"	.60"	.48"	.090"

* SAE-LT Threads
