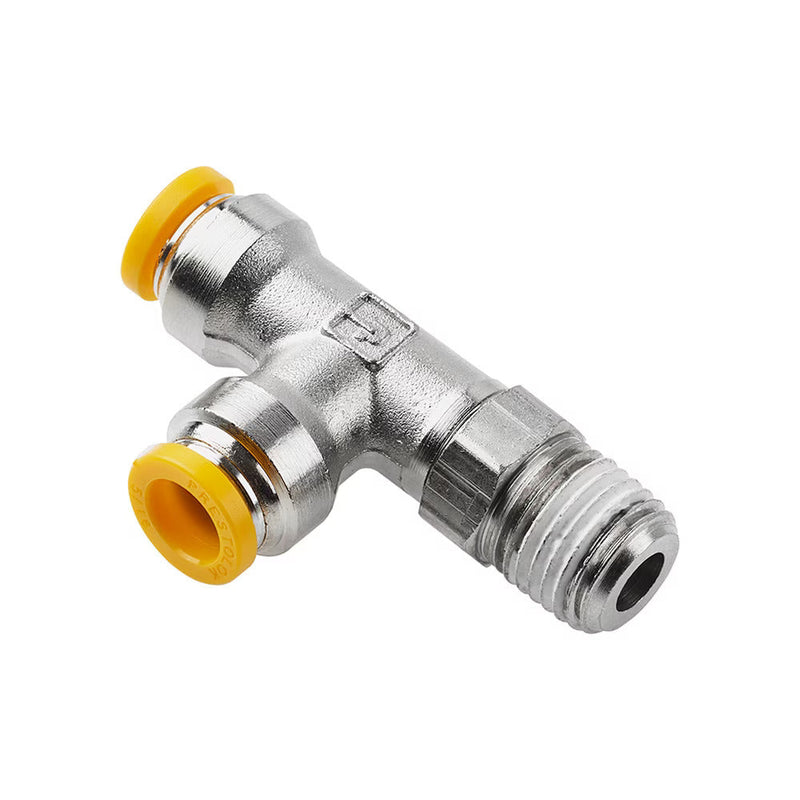

W171PLP-12M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 12mm Swivel Push-to-Connect x 12mm Swivel Push-to-Connect x 1/4" Male BSPT Thread | 11/16" Hex | Tee | Nickel-Plated Brass

W171PLP-12M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 12mm Swivel Push-to-Connect x 12mm Swivel Push-to-Connect x 1/4" Male BSPT Thread | 11/16" Hex | Tee | Nickel-Plated Brass

Save $13.09 Save $13.09
$32.73
$32.73 - $32.73
$32.73
$19.64
$19.64 - $19.64
$19.64

by Parker Hannifin
Push-to-Connect Fittings:W171PLP Male Run Tee Swivel – BSPT
Specifications for Variant SKU: W171PLP-12M-4R Parker
Series: W171PLP Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button, Swivel
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Thread BSPT Hex (C) L N Flow Diameter (D)
W171PLP-4M-2R 4 mm 1/8" 7/16" 19.05 mm 23.95 mm 3.17 mm
W171PLP-4M-4R 4 mm 1/4" 9/16" 19.05 mm 28.60 mm 3.17 mm
W171PLP-6M-2R 6 mm 1/8" 7/16" 20.90 mm 23.92 mm 4.77 mm
W171PLP-6M-4R 6 mm 1/4" 9/16" 20.90 mm 28.49 mm 4.77 mm
W171PLP-6M-6R 6 mm 3/8" 11/16" 20.90 mm 30.78 mm 4.77 mm
W171PLP-8M-2R 8 mm 1/8" 9/16" 24.20 mm 26.16 mm 6.35 mm
W171PLP-8M-4R 8 mm 1/4" 9/16" 24.20 mm 31.75 mm 6.35 mm
W171PLP-8M-6R 8 mm 3/8" 11/16" 24.20 mm 31.75 mm 6.35 mm
W171PLP-10M-4R 10 mm 1/4" 9/16" 25.52 mm 31.75 mm 7.13 mm
W171PLP-10M-6R 10 mm 3/8" 11/16" 25.52 mm 31.75 mm 7.13 mm
W171PLP-10M-8R 10 mm 1/2" 7/8" 25.52 mm 37.84 mm 7.13 mm
W171PLP-12M-4R 12 mm 1/4" 11/16" 29.15 mm 32.77 mm 9.52 mm
W171PLP-12M-6R 12 mm 3/8" 11/16" 29.15 mm 23.95 mm 33.52 mm
W171PLP-12M-8R 12 mm 1/2" 7/8" 29.15 mm 38.86 mm 9.52 mm
