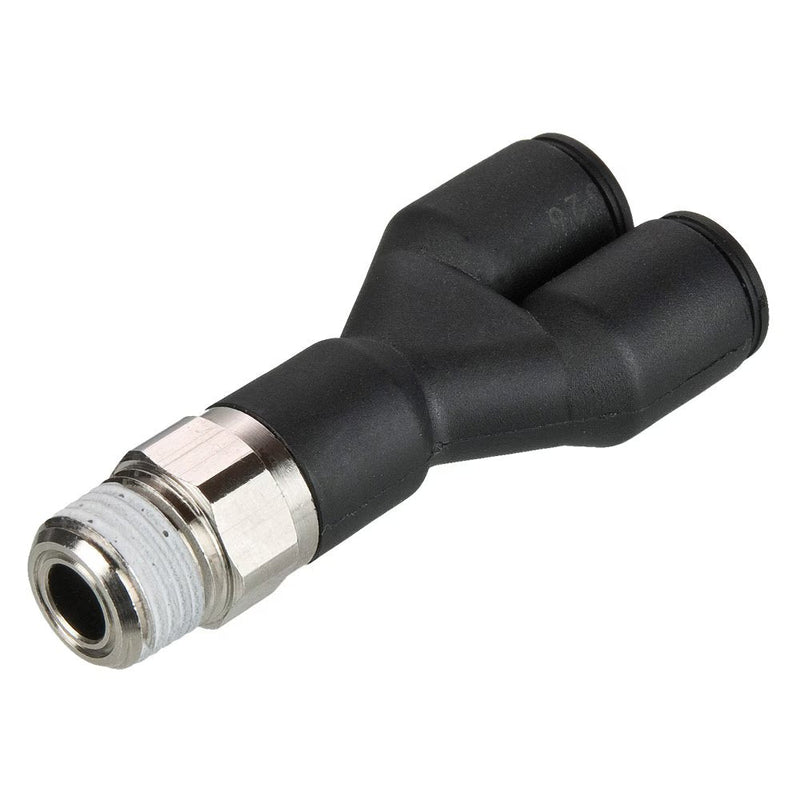

W368PLP-6-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Connector x 1/4" Male NPT Thread | 14mm Hex | 1.30" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

W368PLP-6-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Connector x 1/4" Male NPT Thread | 14mm Hex | 1.30" Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

Save $67.80 Save $67.80
$169.50
$169.50 - $169.50
$169.50
$101.70
$101.70 - $101.70
$101.70

by Parker Hannifin
Push-to-Connect Fittings:W368PLP Male Y Connector - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W368PLP-6-4 Parker | 10 |
Series: W368PLP Series
Shape (Orientation): Y
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPTX Hex (C) H L N
W368PLP-4M-2 5/32" 1/8" 11 mm 1.28" .69" .35"
W368PLP-4M-4 5/32" 1/4" 14 mm 1.30" .69" .35"
W368PLP-4-2 1/4" 1/8" 11 mm 1.61" .87" .45"
W368PLP-4-4 1/4" 1/4" 14 mm 1.56" .87" .45"
W368PLP-6-4 3/8" 1/4" 11 mm 2.24" 1.30" .67"
W368PLP-6-6 3/8" 3/8" 18 mm 2.28" 1.30" .67"
