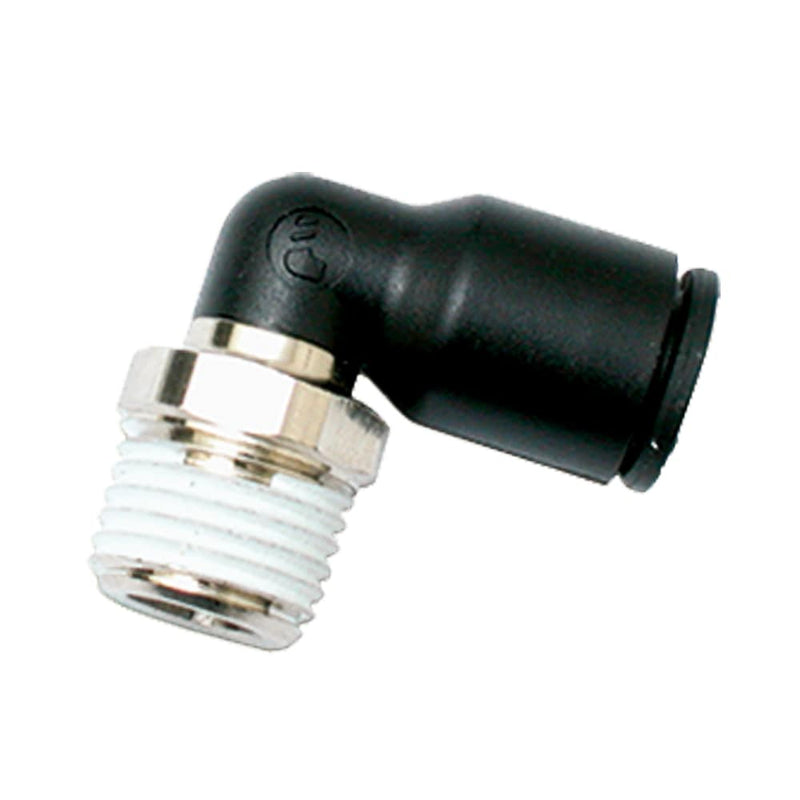

W369PLP-3-2R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/16" Connector x 1/8" Male BSPT Thread | 11mm Hex | .85" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $8.52

$93.67

$93.67 - $93.67

$93.67

$85.15

$85.15 - $85.15

$85.15

by Parker Hannifin
Push-to-Connect Fittings:W369PLP Male Elbow - BSPT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: W369PLP-3-2R Parker \| 10 \|
Series:	W369PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread BSPT	Hex (C)	L	N
W369PLP-2-2R	1/8"	1/8"	10 mm	.57"	.53"
W369PLP-4M-2R	5/32"	1/8"	10 mm	.55"	.53"
W369PLP-4M-4R	5/32"	1/4"	14 mm	.55"	.55"
W369PLP-3-2R	3/16"	1/8"	11 mm	.85"	.67"
W369PLP-4-2R	1/4"	1/8"	10 mm	.71"	.67"
W369PLP-4-4R	1/4"	1/4"	14 mm	.71"	.63"
W369PLP-8M-2R	5/16"	1/8"	10 mm	.91"	.75"
W369PLP-8M-4R	5/16"	1/4"	14 mm	.91"	.71"
W369PLP-8M-6R	5/16"	3/8"	17 mm	.91"	.71"
W369PLP-8M-8R	5/16"	1/2"	21 mm	.91"	.77"
W369PLP-6-4R	3/8"	1/4"	15 mm	1.04"	.87"
W369PLP-6-6R	3/8"	3/8"	170 mm	1.04"	.87"
W369PLP-8-4R	1/2"	1/4"	20 mm	1.38"	1.22"
W369PLP-8-6R	1/2"	3/8"	20 mm	1.38"	1.22"
W369PLP-8-8R	1/2"	1/2"	24 mm	1.38"	1.12"
