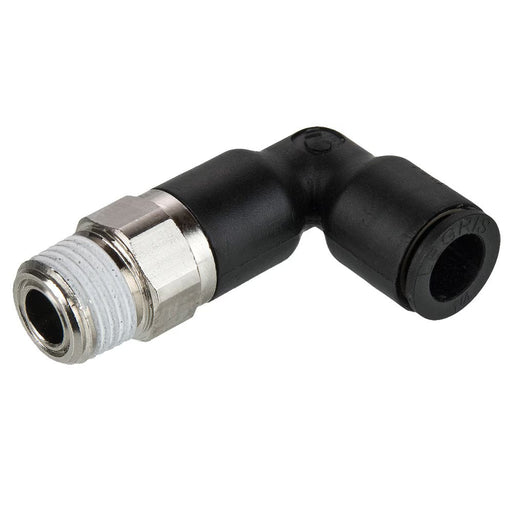

W369PLPX-10M-6R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 10mm Extended x 3/8" Male BSPT Thread | 17mm Hex | 34.5mm | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10

Save $29.06

$231.19

$231.19 - $231.19

$231.19

$202.13

$202.13 - $202.13

$202.13

by Parker Hannifin
Push-to-Connect Fittings:W369PLPX Extended Male Elbow - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPX-10M-6R Parker \| 10 \|
Series:	W369PLPX Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Long, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread BSPT	Hex (C)	H	L
W369PLPX-4M-2R	4 mm	1/8"	10 mm	23.0 mm	19.0 mm
W369PLPX-4M-4R	4 mm	1/4"	14 mm	23.5 mm	19.0 mm
W369PLPX-6M-2R	6 mm	1/8"	10 mm	27.0 mm	22.5 mm
W369PLPX-6M-4R	6 mm	1/4"	14 mm	27.5 mm	22.5 mm
W369PLPX-8M-2R	8 mm	1/8"	13 mm	34.5 mm	29.5 mm
W369PLPX-8M-4R	8 mm	1/4"	14 mm	32.5 mm	29.5 mm
W369PLPX-8M-6R	8 mm	3/8"	17 mm	33.0 mm	29.5 mm
W369PLPX-10M-4R	10 mm	1/4"	15 mm	39.5 mm	34.5 mm
W369PLPX-10M-6R	10 mm	3/8"	17 mm	39.5 mm	34.5 mm
W369PLPX-10M-8R	10 mm	1/2"	21 mm	39.5 mm	34.5 mm
W369PLPX-12M-4R	12 mm	1/4"	19 mm	45.5 mm	40.5 mm
W369PLPX-12M-6R	12 mm	3/8"	19 mm	45.5 mm	40.5 mm
W369PLPX-12M-8R	12 mm	1/2"	21 mm	45.5 mm	40.5 mm
W369PLPX-14M-6R	14 mm	3/8"	21 mm	51.5 mm	46.5 mm
W369PLPX-14M-8R	14 mm	1/2"	21 mm	51.5 mm	46.5 mm
