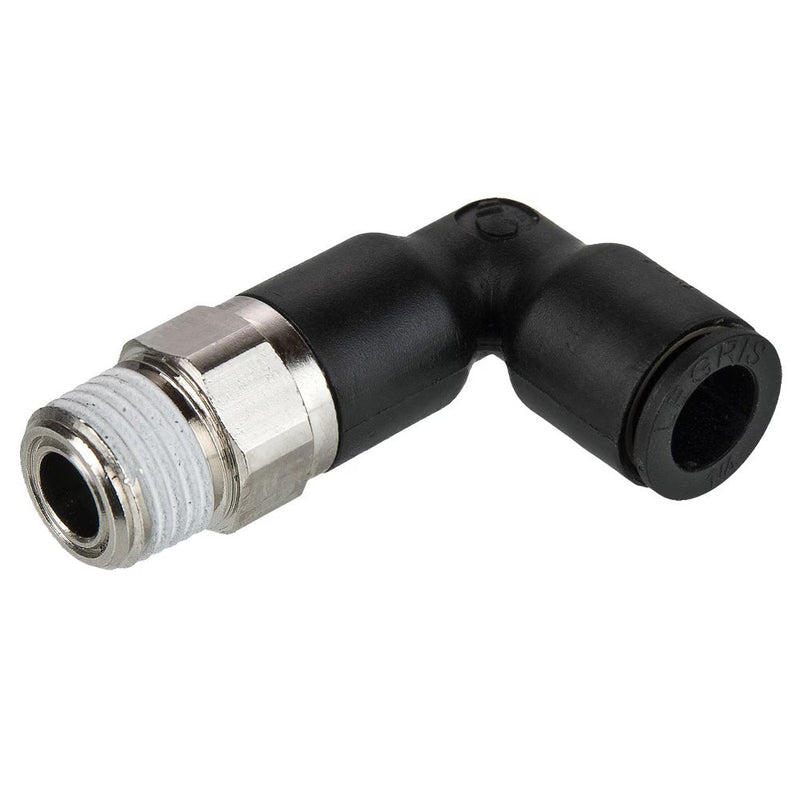

W369PLPX-2-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 1/8" Extended x 1/4" Male NPT Thread | 14mm Hex | .75" Length | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10

Save $40.73

$101.83

$101.83 - $101.83

$101.83

$61.10

$61.10 - $61.10

$61.10

by Parker Hannifin
Push-to-Connect Fittings:W369PLPX Extended Male Elbow - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPX-2-4 Parker \| 10 \|
Series:	W369PLPX Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread NPT / UNF	Hex (C)	H	L
369PLPX-2-0	1/8"	10-32"	8 mm	.91"	.75"
W369PLPX-2-2	1/8"	1/8"	11 mm	.91"	.75"
W369PLPX-2-4	1/8"	1/4"	14 mm	.93"	.75"
369PLPX-4M-0	5/32"	10-32"	8 mm	.91"	.75"
W369PLPX-4M-2	5/32"	1/8"	11 mm	.91"	.75"
W369PLPX-4M-4	5/32"	1/4"	14 mm	.93"	.75"
369PLPX-4-0	1/4"	10-32"	11 mm	1.10"	.93"
369PLPX-4-M7	1/4"	M7	9 mm	1.17"	.93"
W369PLPX-4-2	1/4"	1/8"	11 mm	1.12"	.93"
W369PLPX-4-4	1/4"	1/4"	14 mm	1.08"	.93"
W369PLPX-4-6	1/4"	3/8"	17 mm	1.12"	.93"
W369PLPX-8M-2	5/16"	1/8"	13 mm	1.32"	1.16"
W369PLPX-8M-4	5/16"	1/4"	14 mm	1.28"	1.16"
W369PLPX-6-2	3/8"	1/8"	17 mm	1.40"	1.34"
W369PLPX-6-4	3/8"	1/4"	17 mm	1.41"	1.33"
W369PLPX-6-6	3/8"	3/8"	18 mm	1.45"	1.33"
