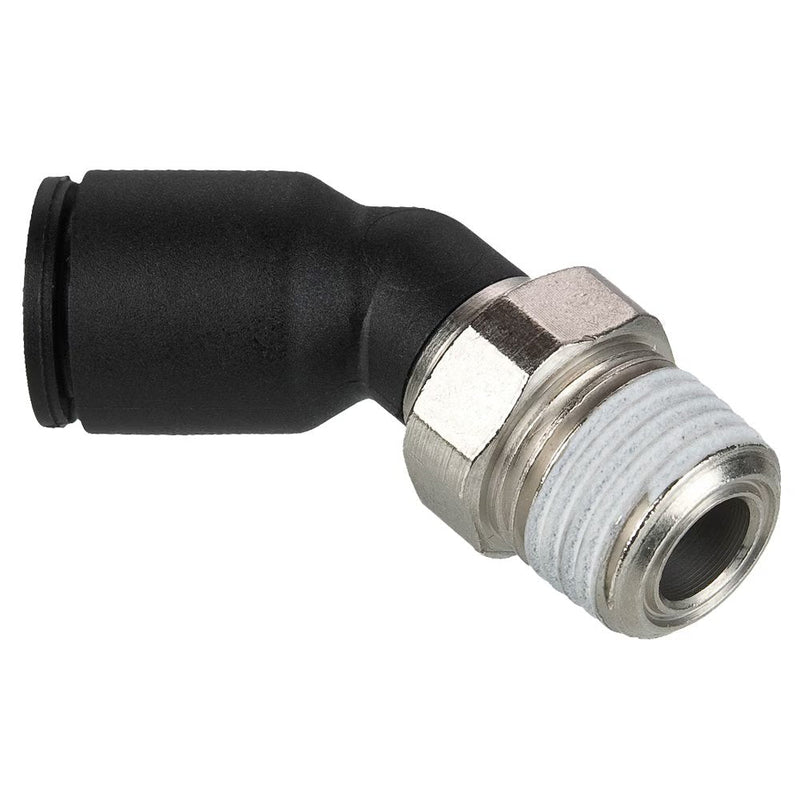

W379PLP-6-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Tube Size x 1/4" Male NPT Thread | 17mm Hex | .91" Length | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $6.03

$66.28

$66.28 - $66.28

$66.28

$60.25

$60.25 - $60.25

$60.25

by Parker Hannifin
Push-to-Connect Fittings:W379PLP Male Elbow 45°- NPT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: W379PLP-6-4 Parker \| 10 \|
Series:	379PLP Series
Shape (Orientation):	45° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread NPT / UNF	Hex (C)	H	L
379PLP-2-0	1/8"	10-32"	8 mm	.91"	.49"
W379PLP-2-2	1/8"	1/8"	11 mm	.81"	.49"
W379PLP-4-2	1/4"	1/8"	11 mm	.98"	.57"
W379PLP-4-4	1/4"	1/4"	14 mm	.98"	.57"
W379PLP-6-4	3/8"	1/4"	17 mm	1.36"	.91"
W379PLP-6-6	3/8"	3/8"	18 mm	1.36"	.91"
