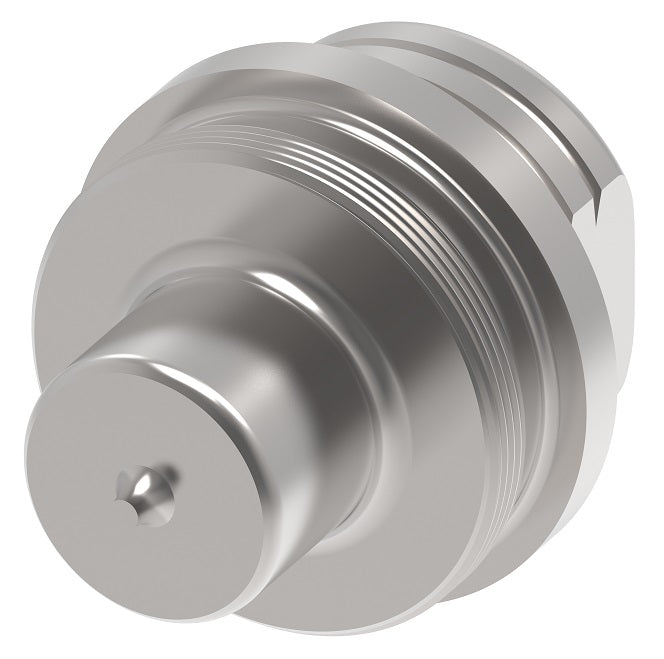

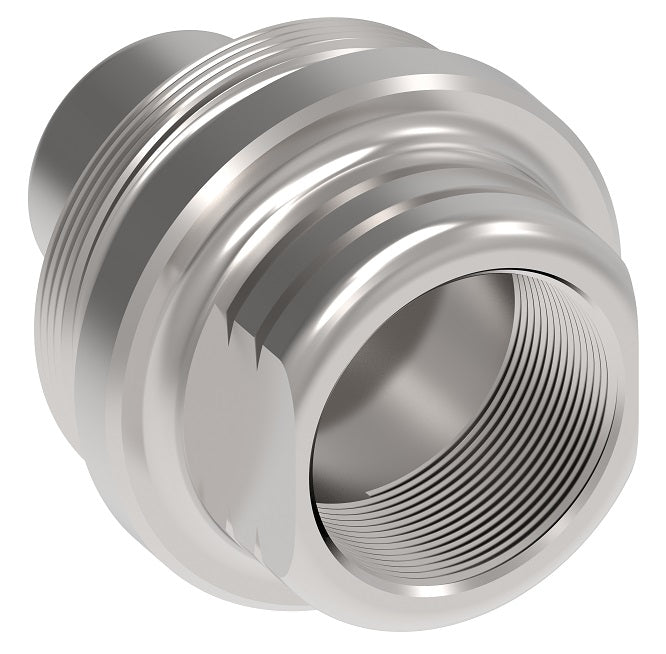

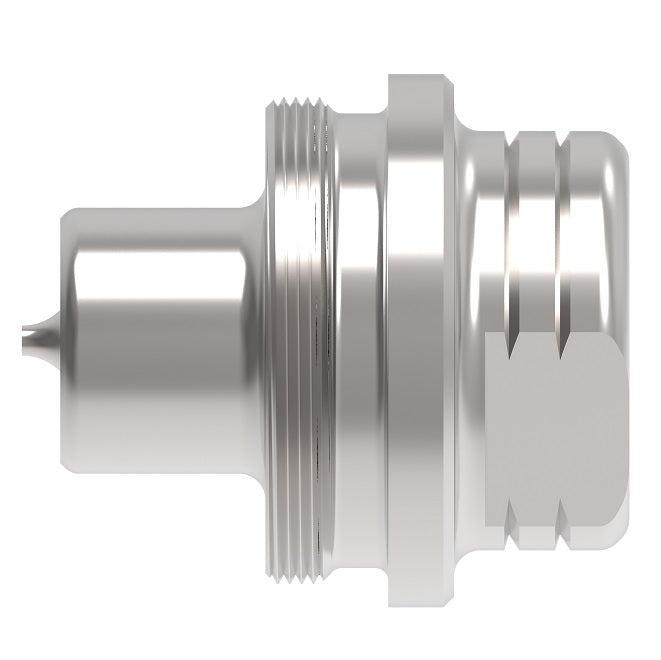

WA5652400 Hansen® by Danfoss | Quick Disconnect Coupling | W56000 Series | 3/8" Male NPT x 3/8" High Pressure | Plug | NBR Seal | Steel

WA5652400 Hansen® by Danfoss | Quick Disconnect Coupling | W56000 Series | 3/8" Male NPT x 3/8" High Pressure | Plug | NBR Seal | Steel

$44.82 - $44.82

$44.82

$44.82 - $44.82

$44.82

Hansen® by Danfoss
W56000 Series | High Pressure Application

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen W56000 Series is a screw to connect coupling designed to operate at pressures exceeding 10,000 psi or 700 bar.

Rugged design makes these couplings suitable for hydraulic jacks and lift loading.

Quantity

Specifications for Variant SKU: WA5652400 Danfoss
Brand:	Hansen
Series:	W56000 Series
Shape (Orientation):	Straight
Material(s):	Zink-Plated Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Screw to connect double shut off with poppet valve. Interchanges with other couplings with the same profile.
Applications & Markets:	Hydraulic Jacks, Lifts Emergency Rescue Equipment
Materials:	Standard body material: Zinc trivalent plated steel. Standard seal materials: Nitrile (NBR).
Specifications:	Designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU.

Coupling Size	DN/ND	Max. Operating Pressure		Min. Burst Pressure		Rated Flow		Air Inclusion
1/4"	5.7	700 bar	10,000 psi	2,800 bar	40,000 psi	11 lmp	2.9 gpm	1.1 ml max
3/8"	7.6	700 bar	10,000 psi	2,800 bar	40,000 psi	16 lmp	4.2 gpm	1.7 ml max


Socket/Female (Figure 1)						Plug/Male (Figure 2)
W56000 Series \| High Pressure Application
Part Number	Coupling Type	DN/ND	Body Size	Thread	Figure	Dimensions						Dust Plug/Cap Part Number
NBR	Coupling Type	DN/ND	Body Size	Thread	Figure	A	B	Hex	C	D	Hex	Dust Plug/Cap Part Number
WA5651700	Socket/Female	5.7	1/4"	1/4 Male NPT	1	2.44" (62mm)	1.12" (28.5mm)	0.87" (22mm)	-	-	-	WA5611700
WA5651400	Plug/Male	5.7	1/4"	1/4 Female NPT	2	-	-	-	1.26" (32mm)	1.10" (28mm)	0.75" (19mm)	WA5611400

WA5652700	Socket/Female	7.6	3/8"	3/8 Male NPT	1	2.19" (55.6mm)	1.38" (35mm)	0.87" (22mm)	-	-	-	WA5612700
WA5652400	Plug/Male	7.6	3/8"	3/8 Female NPT	2	-	-	-	1.65" (42mm)	1.26" (32mm)	1.06" (27mm)	WA5612400
