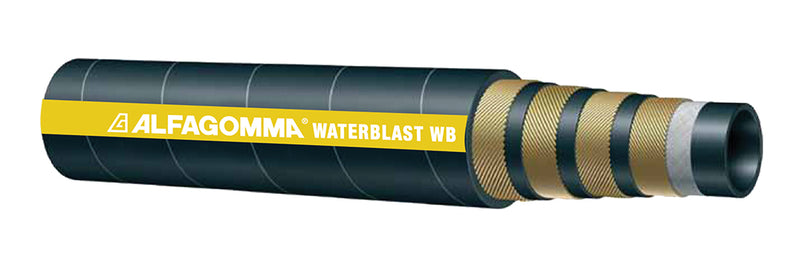

WB10-12 Alfagomma by Kuriyama | WB10 Series | Waterblast Hose | 4-Wire Spiral | 3/4" ID | 1.24" OD | 10,000 PSI | 50ft Length

WB10-12 Alfagomma by Kuriyama | WB10 Series | Waterblast Hose | 4-Wire Spiral | 3/4" ID | 1.24" OD | 10,000 PSI | 50ft Length

Save $224.20 Save $224.20
$784.70
$784.70 - $784.70
$784.70
$560.50
$560.50 - $560.50
$560.50

Kuriyama of America Inc.
Alfagomma | WB10 Series | Waterblast Hose | 4-Wire Spiral

For high pressure water jetting.


Package Quantity: 50 Feet

Specifications for Variant SKU: WB10-12 Kuriyama | 50 |
Brand: Alfagomma
Series: WB10 Series
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 1.24in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Application: High pressure water jetting. SAE Rating: -
Other Ratings: - Tube: Oil and water resistant synthetic rubber.
Reinforcement: Four high tensile steel spirals. Cover: Oil, water and ozone resistant synthetic rubber.
Service Temperature Range: Constant operation: +14°F (-10°C) to +158°F (+70°C) Ambient Temperature: -
Branding: Dunlop Hiflex
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
WB10-06 3/8" 9.5mm 0.79" 20.1mm 10000 PSI 6.0" 152.4mm 0.37 lbs/ft
WB10-08 1/2" 12.7mm 0.97" 24.6mm 10000 PSI 8.0" 203.2mm 0.54 lbs/ft
WB10-12 3/4" 19.1mm 1.24" 31.4mm 10000 PSI 8.2" 208.3mm 0.99 lbs/ft
WB10-16 1" 25.4mm 1.51" 38.2mm 10000 PSI 11.0" 279.4mm 1.37 lbs/ft

* Minimum burst pressure: 2.5-to-1 safety factor.
