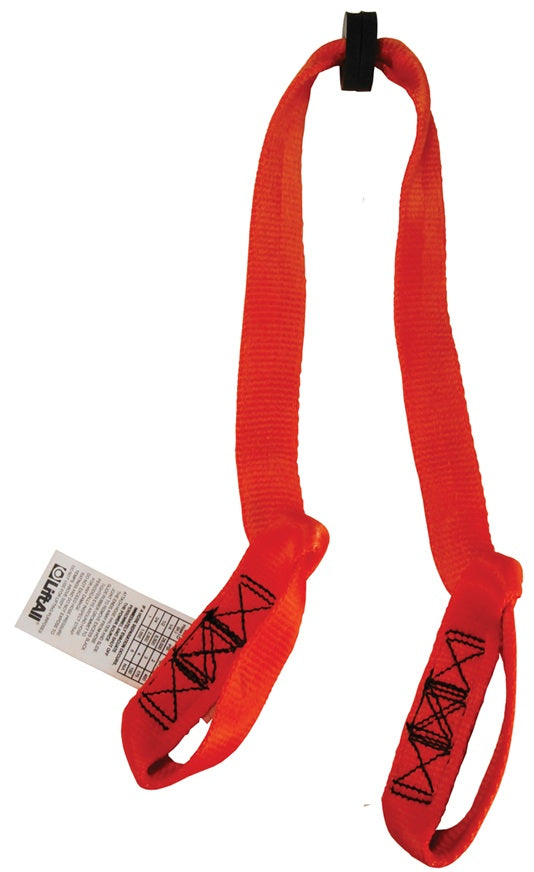

WBN140 by Dixon Valve | Nylon Safety Restraint | For 1" to 4" Hose ID | 1 Ply | 40" Length | Nylon

Save $14.82

$37.05

$37.05 - $37.05

$37.05

$22.23

$22.23 - $22.23

$22.23

Dixon Valve
Safety Restraint | Nylon

Minimizes damage to equipment and injuries to operators in the event hose, couplings or clamps fail, or there is an accidental separation of the assembly.

Specifications for Variant SKU: WBN140 Dixon
Series:	WBN Series

Applications:
Pneumatic, hydraulic and water hoses.
Features:
Strong, flexible nylon webbing. Superior corrosion and spark resistance over metal restraints. Rubber grommets securely choke eyes around hose. Must be installed in the extended position (no slack). Shipped with labels detailing working pressures and safety instructions.
Materials:
Strap: Nylon Grommets: Rubber
Specifications:
Maximum working temperature: 200°F (93°C)

Nylon Part Number	Length	Recommended for use on the following hose inside diameters:
		1/4"	1/2"	3/4"	1"	2"	3"	4"	6"
		Hose maximum working pressure (PSI) for above hose I.D.
WBN130	30"	26,000	6,500	2,900	1,650	400	-	-	-
WBN140	40"	-	-	-	1,650	400	175	100	-
WBN230	30"	52,000	13,000	5,800	3,300	750	-	-	-
WBN244	44"	-	-	-	3,300	750	350	200	-
WBN264	64"	-	-	-	-	750	350	200	90
WBN344	44"	-	-	-	7,300	1,800	820	450	-
WBN364	64"	-	-	-	-	1,800	820	460	200
WBN464	64"	-	-	-	-	2,300	1,040	580	260

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
