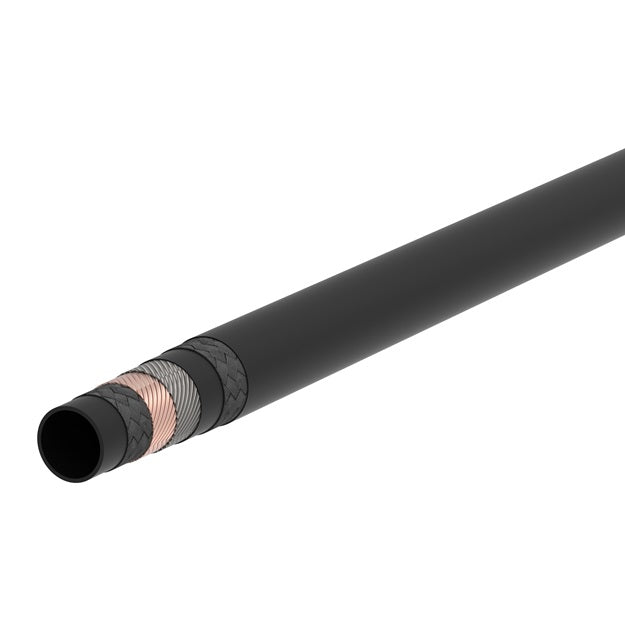

| Hose Properties: |
| Application: |
Suitable for use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer |
SAE Rating: |
Exceeds: SAE 100R4 performance |
| Other Ratings: |
MSHA |
Tube: |
Oil-resistant NBR |
| Reinforcement: |
Textile with helical & anti-static wire |
Cover: |
Nitrile |
| Operating Temperature Range: |
-40°F to +212°F (-40°C to +100°C) |
| Part Number |
Hose ID |
Nominal Hose OD |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Vacuum Service |
Weight |
| mm |
in |
mm |
in |
bar |
psi |
bar |
psi |
mm |
in |
kPa |
in/Hg |
kg/m |
lbs/ft |
| WH004-12 |
19.0mm |
0.75" |
28,6mm |
1.13" |
21,0 bar |
305 psi |
84 bar |
1220 psi* |
40,0mm |
1.57" |
94.8 kPa |
28 in/Hg |
0,54 kg/m |
0.36 lbs/ft |
| WH004-16 |
25.4mm |
1.00" |
35,2mm |
1.39" |
17,0 bar |
245 psi |
68 bar |
980 psi* |
45,0mm |
1.77" |
94.8 kPa |
28 in/Hg |
0,68 kg/m |
0.46 lbs/ft |
| WH004-20 |
31.8mm |
1.25" |
42,0mm |
1.65" |
14,0 bar |
205 psi |
56 bar |
820 psi* |
60,0mm |
2.36" |
94.8 kPa |
28 in/Hg |
0,85 kg/m |
0.57 lbs/ft |
| WH004-24 |
38.1mm |
1.50" |
49,2mm |
1.94" |
10,5 bar |
150 psi |
42 bar |
600 psi* |
65,0mm |
2.56" |
94.8 kPa |
28 in/Hg |
1,20 kg/m |
0.81 lbs/ft |
| WH004-32 |
50.8mm |
2.00" |
62,0mm |
2.44" |
7,0 bar |
100 psi |
28 bar |
400 psi* |
100,0mm |
3.94" |
94.8 kPa |
28 in/Hg |
1,53 kg/m |
1.03 lbs/ft |
| WH004-40 |
63.5mm |
2.50" |
75,5mm |
2.97" |
4,0 bar |
60 psi |
16 bar |
240 psi* |
140,0mm |
5.51" |
94.8 kPa |
28 in/Hg |
2,05 kg/m |
1.38 lbs/ft |
* Maximum working pressure for band clamp type fittings is 3,4 bar [50 psi]
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
