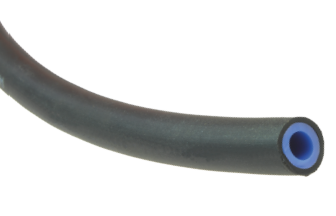

WS0606-500K by Coilhose | Spark-Lin™ Weld Spatter Resistant Tubing | 3/8" OD x.245" ID | 7/8" Bend Radius | Black | 500ft

Save $135.20

$1,216.82

$1,216.82 - $1,216.82

$1,216.82

$1,081.62

$1,081.62 - $1,081.62

$1,081.62

Coilhose Pneumatics - Plastic Tubing - Spark-Lin™ Weld Spatter Resistant Tubing

Quantity

Specifications for Variant SKU: WS0606-500K Coilhose
Hose Color(s):	Black, Blue
Material(s):	Polyurethane

Overview:
The Spark-Lin Weld Spatter Resistant Tubing is specially designed for applications with incidental contact between weld spatter and tubing. Coilhose has combined a blue 95A durometer polyurethane core with a specially formulated flame-retardant jacket to create a tubing that sheds weld spatter before it can do any damage. The cover also meets UL 94 VO requirements, offers strong insulating properties, and resists a wide variety of oils, greases, acids, bases, and aqueous solutions. Also resists ozone, heat aging and ultraviolet light.

Model	Tube O.D.	Tube I.D.	Packing Size	Jacket Color	Bend Radius	Working Pressure at 75° F	Working Pressure at 150° F	Pounds per 100ft
WS2503-100K	5/32"	.093"	100ft bag	Black	3/8"	210 PSI	88 PSI	0.8 lbs.
WS0404-100K	1/4"	.160"	100ft bag	Black	1/2"	175 PSI	74 PSI	1.6 lbs.
WS0404-250K	1/4"	.160"	250ft bag	Black	1/2"	175 PSI	74 PSI	1.6 lbs.
WS0404-1000K	1/4"	.160"	1000ft bag	Black	1/2"	175 PSI	74 PSI	1.6 lbs.
WS0606-100K	3/8"	.245"	100ft bag	Black	7/8"	170 PSI	74 PSI	3.6 lbs.
WS0606-500K	3/8"	.245"	500ft bag	Black	7/8"	170 PSI	74 PSI	3.6 lbs.
WS0809-50K	1/2"	.320"	50ft bag	Black	1-7/8"	175 PSI	70 PSI	5.2 lbs.
