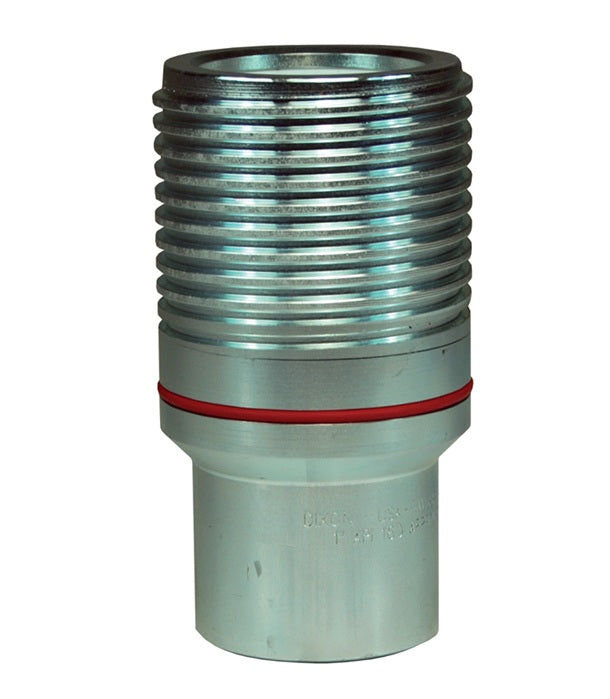

WS16F16-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-BOP-Series | 2" Female NPTF x 2" Heavy-Duty Wingstyle Blowout Preventer Safety End | Plug | Steel

WS16F16-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-BOP-Series | 2" Female NPTF x 2" Heavy-Duty Wingstyle Blowout Preventer Safety End | Plug | Steel

Save $35.34 Save $35.34
$318.04
$318.04 - $318.04
$318.04
$282.70
$282.70 - $282.70
$282.70

Dixon Valve & Coupling
Hydraulic Coupling: WS-BOP-Series Heavy-Duty Wingstyle Blowout Preventer Safety Plug (Female Threads)

Designed for use in oil rig BOP systems where couplings are required to operate under fire conditions in an emergency.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: WS16F16-BOP Dixon
Series: WS-BOP-Series
Shape (Orientation): Straight
Ends Configuration: 2in Male ISO-7241 Wing Nut QD Interchange, 2in Female NPTF
Material(s): Steel
Seal Material(s): Viton/FKM
Compatibility & Interchange:
  • Snap-Tite 75-Series
  • DNP VFF-HD BOP series

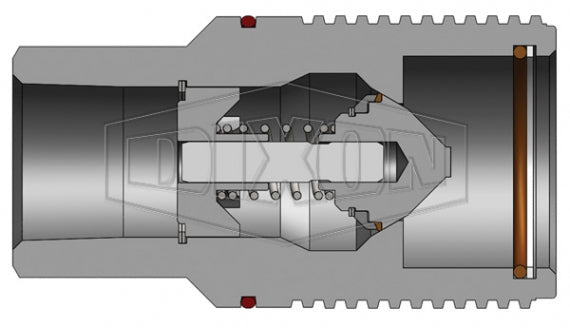

Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Zinc Nickel.
  • Rugged high-strength steel wing nut for threaded connect and disconnect operation.
  • Red powder coated coupler wing-nut and external nipple O-ring for easy BOP service identification.
  • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.
Seal Components:
  • Blow-out Preventer (BOP) couplings contain severe service FKM seals
  • PTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damage.
Specifications:
  • BOP Couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate available upon request.
  • Lloyd's Test Pressure: 5,000 PSI.
Additional Information:
WS-BOP-Series | Blowout Preventer Heavy-Duty Wingstyle Rated Pressure Chart
Body
Size		 Steel Coupler/Plug 316 Stainless Steel Coupler/Plug Air
Inclusion		 Fluid
Loss		 Vacuum
inch HG		 Flow
ΔP = 30 PSI		 Lloyd's Test
Pressure
PSI
Max. Working Burst Max. Working Burst
3/4" 5,000 PSI
(345 Bar)		 32,800 PSI
(2,200 Bar)		 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 10 cc 10 cc 27.4 35 GPM 5,000
1" 5,000 PSI
(345 Bar)		 25,100 PSI
(1,700 Bar)		 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 23 cc 15 cc 27.4 65 GPM 5,000
1-1/4" 5,000 PSI
(345 Bar)		 25,100 PSI
(1,700 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 50 cc 30 cc 27.4 105 GPM 5,000
1-1/2" 5,000 PSI
(345 Bar)		 20,000 PSI
(1,400 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 100 cc 60 cc 27.4 160 GPM 5,000
2" 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 5,000 PSI
(345 Bar)		 15,000 PSI
(1,000 Bar)		 200 cc 135 cc 27.4 270 GPM 5,000
WS-BOP-Series | Heavy-Duty Wingstyle Blowout Preventer Safety Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
WS6F4-BOP Plug/Male 3/4" 1/2" - 14 Female NPTF Steel 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS6F6-BOP Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS6F6-SS-BOP Plug/Male 3/4" 3/4" - 14 Female NPTF 316 stainless 3.27"
(83.1mm)		 1.74"
(44.2mm)
WS8F8-BOP Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 4.18"
(106.2mm)		 2.25"
(57.2mm)
WS8F8-SS-BOP Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 4.18"
(106.2mm)		 2.25"
(57.2mm)
WS10F10-BOP Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 5.38"
(136.7mm)		 2.63"
(66.8mm)
WS10F10-SS-BOP Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 5.38"
(136.7mm)		 2.63"
(66.8mm)
WS12F12-BOP Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 5.98"
(151.9mm)		 3.25"
(82.6mm)
WS12F12-SS-BOP Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 5.98"
(151.9mm)		 3.25"
(82.6mm)
WS16F16-BOP Plug/Male 2" 2" - 11-1/2 Female NPTF Steel 7.05"
(179.1mm)		 4.00"
(101.6mm)
WS16F16-SS-BOP Plug/Male 2" 2" - 11-1/2 Female NPTF 316 Stainless 7.05"
(179.1mm)		 4.00"
(101.6mm)
WS-BOP-Series | Heavy-Duty Wingstyle Blowout Preventer Safety Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD
6WSF4-BOP Socket/Female 3/4" 1/2" - 14 Female NPTF Steel 2.76"
(70.1mm)		 3.31"
(82.0mm)
6WSF6-BOP Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 2.76"
(70.1mm)		 3.31"
(82.0mm)
6WSF6-SS-BOP Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.76"
(70.1mm)		 3.31"
(82.0mm)
8WSF8-BOP Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.45"
(87.6mm)		 4.10"
(101.6mm)
8WSF8-SS-BOP Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 3.45"
(87.6mm)		 4.10"
(101.6mm)
10WSF10-BOP Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 4.40"
(111.8mm)		 4.78"
(118.1mm)
10WSF10-SS-BOP Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 4.40"
(111.8mm)		 4.78"
(118.1mm)
12WSF12-BOP Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 5.13"
(130.3mm)		 5.68"
(137.9mm)
12WSF12-SS-BOP Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 5.13"
(130.3mm)		 5.68"
(137.9mm)
16WSF16-BOP Socket/Female 2" 2" - 11-1/2 Female NPTF Steel 6.09"
(154.7mm)		 6.90"
(170.9mm)
16WSF16-SS-BOP Socket/Female 2" 2" - 11-1/2 Female NPTF 316 Stainless 6.09"
(154.7mm)		 6.90"
(170.9mm)
