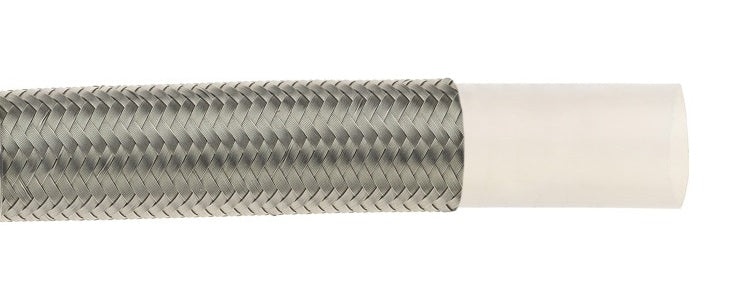

WSB-04-100 by Dixon Valve | -04 | Nominal Smooth Bore PTFE Hose | Coiled | White Non-Conductive Tube | 1/4" Nominal Size | .187" Average ID | 100ft

WSB-04-100 by Dixon Valve | -04 | Nominal Smooth Bore PTFE Hose | Coiled | 1/4" Nominal Size | .187" Average ID | White Non-Conductive Tube | 100ft

Save $22.58

$396.46

$396.46 - $396.46

$396.46

$373.88

$373.88 - $373.88

$373.88

Dixon Valve
PTFE Hose | Nominal Smooth Bore PTFE Hose - Coiled

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels, and steam.

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: WSB-04-100 Dixon
Series:	WSB Series
Hose Color(s):	Metallic
Dash Size:	-4
Internal Diameter:	0.187in
Tubing Construction:	Smooth Bore Non-Dissipating PTFE
Cover Construction:	Stainless Steel Braid
Compatible with the following Series:	FJC Series \| FJS Series \| FJB Series \| MPC Series \| MPS Series \| MPB Series \| SAEC Series \| SAEB Series \| TES Series \| FJS45 Series \| FJC45 Series \| FJS90 Series \| FJC90 Series

Approvals:
Nominal standard smooth bore PTFE hose meets SAE100R14.
Materials:
304 stainless braided
Specifications:
Temperature range: -100°F to 450°F (-73°C to 232°C). FITTINGS NOT INCLUDED


White, Non-Conductive Part Number	Black, Conductive Part Number	Nominal Size	Average I.D.	Length	Dash Size	Working Pressure (PSI)	Burst Pressure (PSI)
WSB-04-100	-	1/4"	0.187"	100ft	-04	3000	12000
WSB-05-100	-	5/16"	0.250"	100ft	-05	3000	12000
WSB-06-100	-	3/8"	0.312"	100ft	-06	2500	10000
WSB-08-100	-	1/2"	0.405"	100ft	-08	2000	8000
WSB-10-100	BSB-10-100	5/8"	0.500"	100ft	-10	1750	7000
WSB-12-100	-	3/4"	0.625"	100ft	-12	1500	6000
WSB-16-50	-	1"	0.875"	50ft	-16	1000	4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
