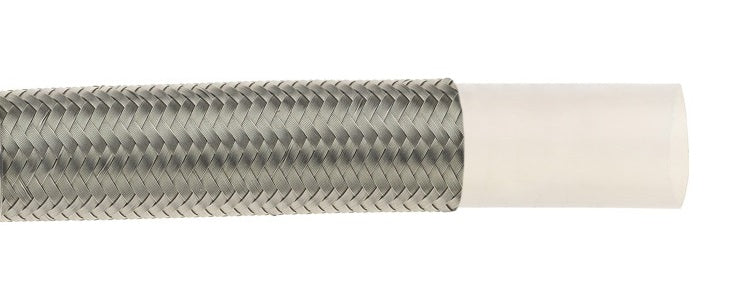

WSB-04 by Dixon Valve | -04 | Nominal Smooth Bore PTFE Hose | White Non-Conductive Tube | 1/4" Nominal Size | .187" Average ID

WSB-04 by Dixon Valve | -04 | Nominal Smooth Bore PTFE Hose | 1/4" Nominal Size | .187" Average ID | White Non-Conductive Tube

Save $2.54

$6.35

$6.35 - $6.35

$6.35

$3.81

$3.81 - $3.81

$3.81

Dixon Valve
PTFE Hose | Nominal Smooth Bore PTFE Hose

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels, and steam.

Specifications for Variant SKU: WSB-04 Dixon
Series:	WSB Series
Hose Color(s):	Metallic
Dash Size:	-4
Internal Diameter:	0.187in
Tubing Construction:	Smooth Bore Non-Dissipating PTFE
Cover Construction:	Stainless Steel Braid
Compatible with the following Series:	FJC Series \| FJS Series \| FJB Series \| MPC Series \| MPS Series \| MPB Series \| SAEC Series \| SAEB Series \| TES Series \| FJS45 Series \| FJC45 Series \| FJS90 Series \| FJC90 Series

Approvals:
Nominal standard smooth bore PTFE hose meets SAE100R14.
Materials:
304 stainless braided
Specifications:
Temperature range: -100°F to 450°F (-73°C to 232°C). FITTINGS NOT INCLUDED


White, Non-Conductive Part Number	Black, Conductive Part Number	Nominal Size	Average I.D.	Dash Size
WSB-04	BSB-04	1/4"	0.187"	-04
WSB-05	-	5/16"	0.250"	-05
WSB-06	BSB-06	3/8"	0.312"	-06
WSB-06T	-	3/8" True ID	0.375"	-06T
WSB-08	BSB-08	1/2"	0.405"	-08
WSB-10	BSB-10	5/8"	0.500"	-10
WSB-12	BSB-12	3/4"	0.625"	-12
WSB-12T	-	3/4" True ID	0.750"	-12T
WSB-16	-	1"	0.875"	-16
-	BSB-16T	1" True ID	1.000"	-16T
