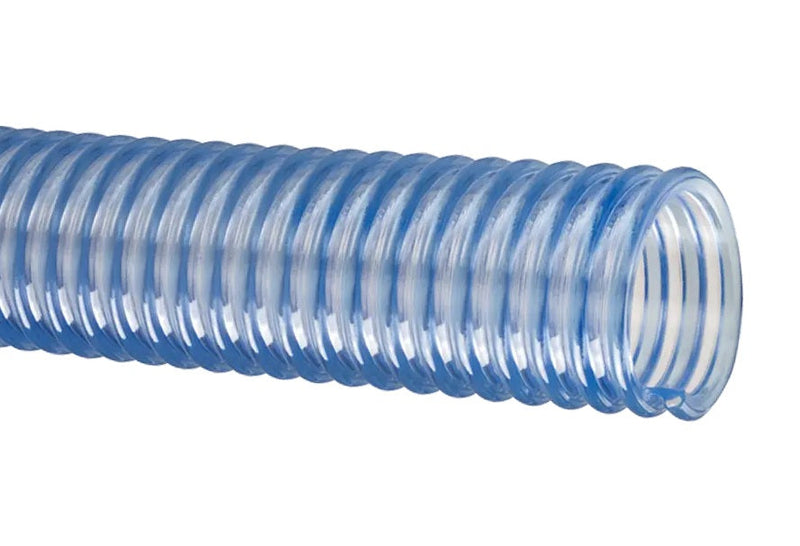

WT250X100 Tigerflex® by Kuriyama | WT™ Series | Food Grade Material Handling Hose | PVC | 2-1/2" ID | 2.99" OD | 100ft Length

WT250X100 Tigerflex® by Kuriyama | WT™ Series | Food Grade Material Handling Hose | PVC | 2-1/2" ID | 2.99" OD | 100ft Length

Save $517.38 Save $517.38
$1,197.78
$1,197.78 - $1,197.78
$1,197.78
$680.40
$680.40 - $680.40
$680.40
100 ft | $6.80 / ft
p>Kuriyama of America Inc.
Tigerflex® | WT™ Series | Food Grade Material Handling Hose | PVC

Ideal for transferring food-grade liquids such as potable water, beer, wine, and juice, as well as pharmaceutical products and material handling in plastic processing, pneumatic conveying, and poultry processing.

Made in the USA.
Specifications for Variant SKU: WT250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WT Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.99in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, BSE/TSE, FDA 21 CFR Part 170.199, RoHS Compliant, Applicable USDA Requirements
Special Properties: Outer Helix Protection
Food Grade PVC Hose

Tigerflex™ WT™ Series

Food grade PVC material handling and liquid suction hose with a rigid PVC helix. An industry standard for pneumatic material handling, combining light weight, flexibility and durability.

✓

Food Grade Materials

Complies with applicable FDA, 3-A and USDA requirements

◎

See-the-Flow

Transparent construction for visual confirmation of flow

⚙

Convoluted Cover

Outer cover provides increased hose flexibility

★

Made in the USA

Engineered compound and uncompromising quality control

1

What is this product used for?
  • Food grade liquids such as potable water, beer, wine and juice
  • Food grade material handling — standard duty
  • Pharmaceutical product transfer
  • Plastic processing equipment
  • Pneumatic conveying equipment
  • Poultry processing
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

PVC

Service Temperature Range

-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

3A (01) · BSE/TSE (02) · FDA (03) · Phthalate Free (10) · RoHS (11) · USDA (12)

3

What are the main product features?
  • Superior Product Design — Tigerflex™ WT™ series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
  • Food Grade Materials — Hose complies with applicable FDA, 3-A and USDA requirements.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover — Provides increased hose flexibility.
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
1" ID
WT100X50 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28 in Hg 28 in Hg 2" 50ft 0.21 lbs
WT100X100 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28 in Hg 28 in Hg 2" 100ft 0.21 lbs
1-1/4" ID
WT125X50 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28 in Hg 28 in Hg 2" 50ft 0.28 lbs
WT125X100 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28 in Hg 28 in Hg 2" 100ft 0.28 lbs
1-1/2" ID
WT150X50 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 50ft 0.35 lbs
WT150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 100ft 0.35 lbs
WT150X200 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 200ft 0.35 lbs
2" ID
WT200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 50ft 0.56 lbs
WT200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 100ft 0.56 lbs
WT200X200 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 200ft 0.56 lbs
2-1/4" ID
WT225X50 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 50ft 0.65 lbs
WT225X100 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 100ft 0.65 lbs
2-1/2" ID
WT250X50 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 50ft 0.77 lbs
WT250X100 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 100ft 0.77 lbs
WT250X200 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 200ft 0.77 lbs
3" ID
WT300X50 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 50ft 1.10 lbs
WT300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 100ft 1.10 lbs
WT300X200 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 200ft 1.10 lbs
3-1/2" ID
WT350X50 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI 28 in Hg 24 in Hg 8" 50ft 1.48 lbs
WT350X100 3-1/2" 88.9mm 4.21" 107.0mm 35 PSI 18 PSI 28 in Hg 24 in Hg 8" 100ft 1.48 lbs
4" ID
WT400X50 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 22 in Hg 10" 50ft 1.80 lbs
WT400X100 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 22 in Hg 10" 100ft 1.80 lbs
WT400X200 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 22 in Hg 10" 200ft 1.80 lbs
5" ID
WT500X50 5" 127.0mm 5.74" 145.8mm 30 PSI 15 PSI 24 in Hg 22 in Hg 16" 50ft 2.34 lbs
WT500X100 5" 127.0mm 5.74" 145.8mm 30 PSI 15 PSI 24 in Hg 22 in Hg 16" 100ft 2.34 lbs
6" ID
WT600X50 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 24 in Hg 22 in Hg 18" 50ft 3.70 lbs
WT600X100 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 24 in Hg 22 in Hg 18" 100ft 3.70 lbs
8" ID
WT800X50 8" 203.2mm 8.97" 227.8mm 20 PSI 10 PSI 20 in Hg 18 in Hg 36" 50ft 5.53 lbs
Metric Sizes
WT45MX50 1.77" 45.0mm 2.09" 53.0mm 45 PSI 25 PSI 28 in Hg 24 in Hg 4" 50ft 0.44 lbs
WT45MX100 1.77" 45.0mm 2.09" 53.0mm 45 PSI 25 PSI 28 in Hg 24 in Hg 4" 100ft 0.44 lbs
WT57MX50 2.24" 57.0mm 2.68" 68.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 50ft 0.64 lbs
WT57MX100 2.24" 57.0mm 2.68" 68.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 100ft 0.64 lbs
WT60MX50 2.36" 60.0mm 2.80" 71.1mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 50ft 0.71 lbs
WT60MX100 2.36" 60.0mm 2.80" 71.1mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 100ft 0.71 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on 3A, BSE/TSE, FDA, Phthalate Free, RoHS and USDA compliance.

i
Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold by the coil in 50 ft, 100 ft and 200 ft lengths, depending on hose size. See the size chart above for available part numbers.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
