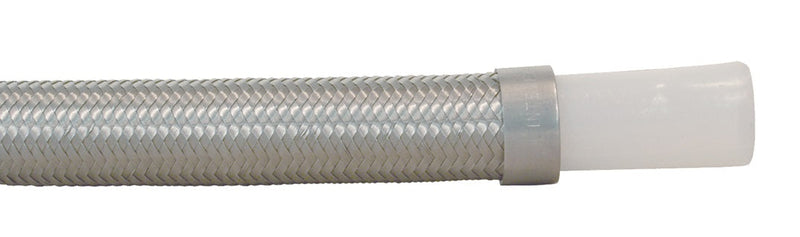

WTB-T08 by Dixon Valve | -08 | Heavy Wall True I.D. Smooth Bore PTFE Hose | 1/2" Size | White Non-Conductive Tube

Name: WTB-T08 by Dixon Valve | -08 | Heavy Wall True I.D. Smooth Bore PTFE Hose | 1/2" Size | White Non-Conductive Tube
Brand: Dixon
SKU: WTB-T08 Dixon
Price: 12.03 USD
Availability: InStock

Save $1.17

$13.20

$13.20 - $13.20

$13.20

$12.03

$12.03 - $12.03

$12.03

Dixon Valve
PTFE Hose | Heavy Wall True I.D. Smooth Bore Hose

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Quantity

Specifications for Variant SKU: WTB-T08 Dixon
Series:	WTB-T Series
Hose Color(s):	Metallic
Dash Size:	-8
Internal Diameter:	0.50in
Tubing Construction:	Smooth Bore Non-Dissipating PTFE
Cover Construction:	Stainless Steel Braid
Compatible with the following Series:	FJC-T Series \| FJR-T Series \| MPC-T Series \| MPR-T Series \| TCR-T Series \| TCMR-T Series \| FRR-T Series \| FRRE-T Series

Materials:
304 stainless braided
Specifications:
Temperature Range: -100°F to 450°F (-73°C to 232°C) FITTINGS NOT INCLUDED


White, Non-Conductive Part Number	Size	Working Pressure	Burst Pressure
WTB-T04	1/4"	3000 PSI	12000 PSI
WTB-T06	3/8"	2250 PSI	9000 PSI
WTB-T08	1/2"	1500 PSI	6000 PSI
WTB-T12	3/4"	1100 PSI	4400 PSI
WTB-T16	1"	900 PSI	3600 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
