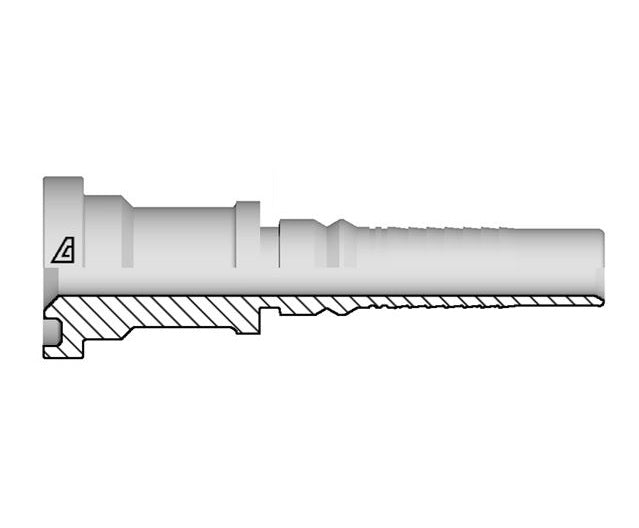

Alfagomma | X Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 O-Ring Flange Interlock

Specifications for Variant SKU: X-3232-C61S Kuriyama
Brand:	Alfagomma
Series:	X Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Code 61 Flange
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518

About X Series Fittings:
Two-piece Interlock insert for spiral wire reinforced hoses. Requires both internal and external skiving and a XF1 or XF2 Interlock ferrule to perform properly.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	PSI	lbs/each
X-2424-C61S	24	1-1/2"	38.1mm	2.38"	60.3mm	56.0mm	3000 PSI	1.81 lbs
X-3232-C61S	32	2"	50.8mm	2.81"	71.4mm	69.0mm	3000 PSI	2.87 lbs
