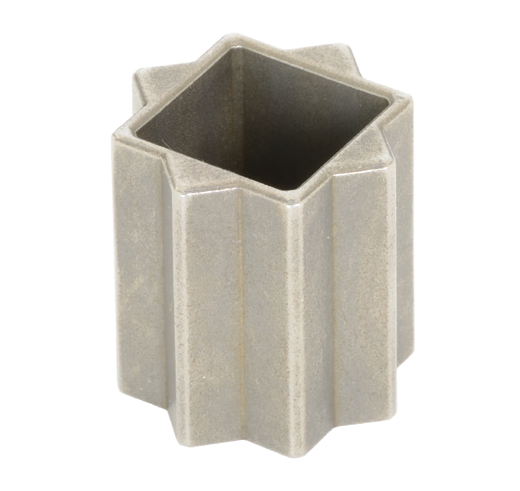

XB51-SVP Dixon Valve Actuator Sleeve Insert - Star Design - 27-36mm - 304 Stainless Steel

XB51-SVP Dixon Valve Actuator Sleeve Insert - Star Design - 27-36mm - 304 Stainless Steel

Save $28.51 Save $28.51
$71.27
$71.27 - $71.27
$71.27
$42.76
$42.76 - $42.76
$42.76

Dixon Sanitary Fittings
Actuator Sleeve Insert - Star Design - 304 Stainless Steel

Fits all pneumatic actuators.

Reduces actuator ISO 5211 output drive for direct assembly with smaller square valve stems and couplers.
Specifications for Variant SKU: XB51-SVP Dixon
Features:
  • Double square sleeve - high strength iron-based powdered metal.
  • Multiple size reductions possible with one sleeve.
Part Number A B C D H R
XB51-STVD 11mm 9mm 15.0mm N/A 17.0mm 12.5mm
XB51-SVH 14mm 9mm 19.1mm N/A 20.0mm 12.5mm
XB51-STVA 14mm 11mm 19.1mm N/A 20.0mm 14.5mm
XB51-SVQ 17mm 9mm 23.1mm N/A 24.0mm 12.5mm
XB51-SVI 17mm 11mm 23.1mm N/A 24.0mm 14.5mm
XB51-STVB 17mm 14mm 23.1mm N/A 24.0mm 19.2mm
XB51-SVJ 22mm 11mm 29.6mm N/A 30.0mm 14.5mm
XB51-SVK 22mm 14mm 29.6mm N/A 30.0mm 19.2mm
XB51-STVC 22mm 17mm 29.6mm N/A 30.0mm 23.3mm
XB51-SVL 27mm 14mm 36.0mm 27.0mm 29.0mm 19.2mm
XB51-SVM 27mm 17mm 36.0mm 27.0mm 29.0mm 23.3mm
XB51-STVE 27mm 22mm 36.0mm 27.0mm 29.0mm 30.0mm
XB51-SVP 36mm 27mm 48.0mm 33.0mm 35.0mm 37.0mm
