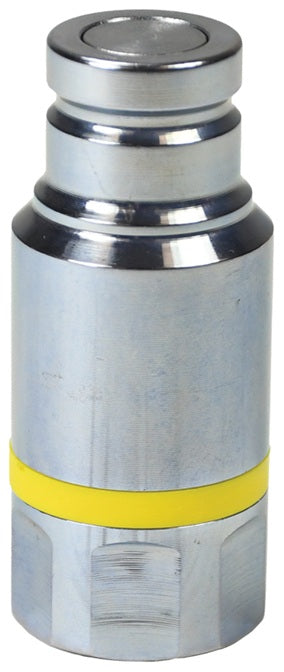

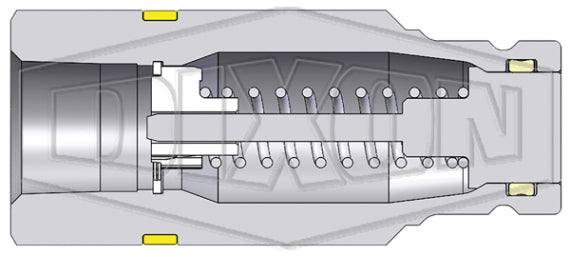

XK3F3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | XK-Series | 3/8" Female NPTF x 3/8" 10K Flushface | Plug | Steel

Save $23.50

$58.75

$58.75 - $58.75

$58.75

$35.25

$35.25 - $35.25

$35.25

Dixon Valve & Coupling
Hydraulic Coupling: XK-Series 10K Flushface Plug (Female Threads)

For use with hydraulic tools and power units such as hydraulic torque tools, jacks, fire rescue tools, and hand pumps.

Specifications for Variant SKU: XK3F3 Dixon
Series:	XK-Series

Compatibility & Interchange:	10K Flushface Interchanges with Parker FH-Series
Features:	Flushface Automatic locking sleeve Colored ID bands
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant zinc nickel for corrosion resistance. Steel plugs are hardened to provide resistance to brinelling.
Seal Components:	Plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C). Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

XK-Series \| 10K Flushface Rated Pressure Chart
Body Size	Max. Working	Connected Burst	Disconnected Burst Coupler	Disconnected Burst Plug
1/4"	10,000 PSI (690 bar)	27,000 PSI (1862 bar)	27,000 PSI (1862 bar)	30,000 PSI (2069 bar)
3/8"	10,000 PSI (690 bar)	30,000 PSI (2,068 bar)	28,000 PSI (1,930 bar)	27,000 PSI (1,860 bar)

XK-Series \| 10K Flushface Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
XK2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	2.15" (55 mm)	0.92" (23 mm)	7/8"
XK3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	2.50" (63.5mm)	1.07" (27.18mm)	1"

XK-Series \| 10K Flushface Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
2XKF2	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	2.10" (53 mm)	1.16" (30 mm)	7/8"
3XKF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.41" (61.21mm)	1.31" (33.27mm)	1"

XK-Series \| 10K Flushface Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
2XKM2	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	2.38" (60 mm)	1.16" (30 mm)	7/8"
3XKM3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.77" (70 mm)	1.16" (30 mm)	1"

HT-Series \| Correct Connect® Bands

Part Number Blue Part Number	Part Number Orange Part Number	Part Number Green Part Number	Part Number Yellow Part Number	Part Number Red Part Number	Description	Body Size
2HTBAND-B	2HTBAND-O	2HTBAND-G	2HTBAND-Y	2HTBAND-R	Coupler Band	1/4"
HT2BAND-B	HT2BAND-O	HT2BAND-G	HT2BAND-Y	HT2BAND-R	Plug Band	1/4"

3HTBAND-B	3HTBAND-O	3HTBAND-G	3HTBAND-Y	3HTBAND-R	Coupler Band	3/8"
HT3BAND-B	HT3BAND-O	HT3BAND-G	HT3BAND-Y	HT3BAND-R	Plug Band	3/8"

4HTBAND-B	4HTBAND-O	4HTBAND-G	4HTBAND-Y	4HTBAND-R	Coupler Band	1/2"
HT4BAND-B	HT4BAND-O	HT4BAND-G	HT4BAND-Y	HT4BAND-R	Plug Band	1/2"

5HTBAND-B	5HTBAND-O	5HTBAND-G	5HTBAND-Y	5HTBAND-R	Coupler Band	5/8"
HT5BAND-B	HT5BAND-O	HT5BAND-G	HT5BAND-Y	HT5BAND-R	Plug Band	5/8"

6HTBAND-B	6HTBAND-O	6HTBAND-G	6HTBAND-Y	6HTBAND-R	Coupler Band	3/4"
HT6BAND-B	HT6BAND-O	HT6BAND-G	HT6BAND-Y	HT6BAND-R	Plug Band	3/4"

8HTBAND-B	8HTBAND-O	8HTBAND-G	8HTBAND-Y	8HTBAND-R	Coupler Band	1"
HT8BAND-B	HT8BAND-O	HT8BAND-G	HT8BAND-Y	HT8BAND-R	Plug Band	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
