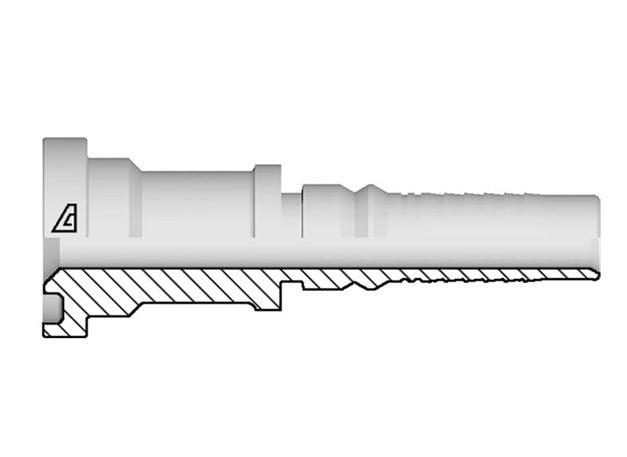

Y-1212-C62S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -12 Code 62 Flange Interlock x -12 Hose ID | Steel

Save $11.48

$40.19

$40.19 - $40.19

$40.19

$28.71

$28.71 - $28.71

$28.71

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Code 62 Flange Interlock x Hose Barb

SAE J518

Specifications for Variant SKU: Y-1212-C62S Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max Working Pressure	Weight
Part Number	Dash Size	in	mm	in	mm	mm	PSI	lbs/each
Y-1212-C62S	-12	3/4"	19.0mm	1.63"	41.3mm	50.0mm	6000 PSI	0.59 lbs
Y-1616-C62S	-16	1"	25.4mm	1.88"	47.6mm	54.0mm	6000 PSI	0.91 lbs
Y-2020-C62S	-20	1-1/4"	31.8mm	2.13"	54.0mm	62.2mm	6000 PSI	1.33 lbs
Y-2424-C62S	-24	1-1/2"	38.1mm	2.50"	63.5mm	68.5mm	6000 PSI	2.01 lbs
Y-3232-C62S	-32	2"	50.8mm	3.13"	79.4mm	87.0mm	6000 PSI	3.60 lbs
