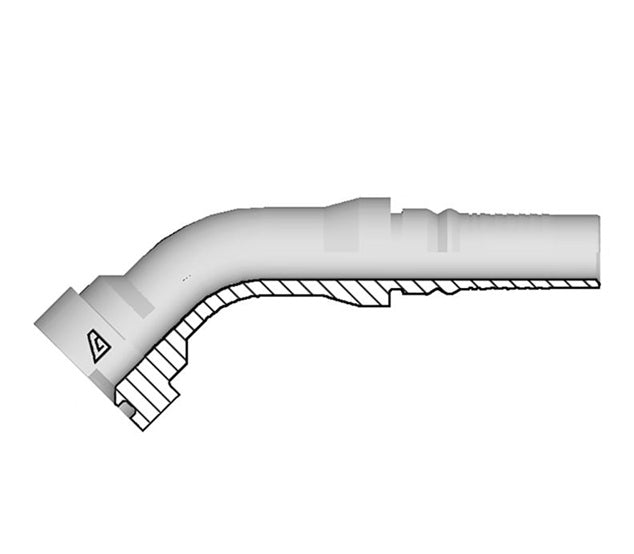

Y-1616-CFL4 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -16 CAT Flange Interlock x -16 Hose ID | 6000 PSI | Steel

Save $25.46

$89.10

$89.10 - $89.10

$89.10

$63.64

$63.64 - $63.64

$63.64

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | CAT Flange Interlock x Hose Barb

6000 PSI

Specifications for Variant SKU: Y-1616-CFL4 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	T	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	mm	lbs/each
Y-1616-CFL4	-16	1"	25.4mm	1.88"	47.6mm	93.9mm	40mm	14.3mm	1.37 lbs
Y-2020-CFL4	-20	1-1/4"	31.8mm	2.13"	54.0mm	103.6mm	43mm	14.3mm	1.75 lbs
