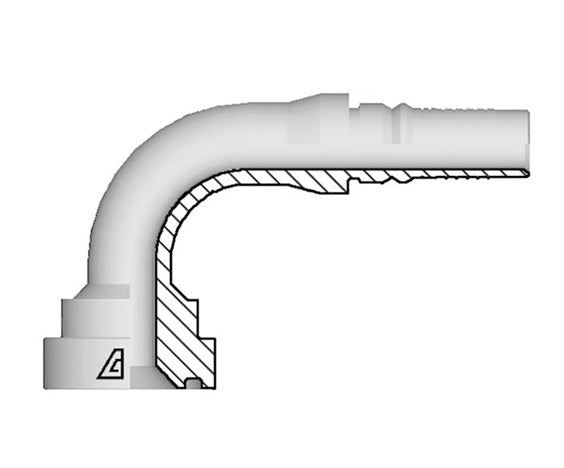

Y-1616-CFL9 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -16 CAT Flange Interlock x -16 Hose ID | 6000 PSI | Steel

Save $27.78

$97.23

$97.23 - $97.23

$97.23

$69.45

$69.45 - $69.45

$69.45

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | CAT Flange Interlock x Hose Barb

6000 PSI

Specifications for Variant SKU: Y-1616-CFL9 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	T	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	mm	lbs/each
Y-1212-CFL9	-12	3/4"	19.0mm	1.63"	41.3mm	63.7mm	67mm	14.3mm	0.95 lbs
Y-1616-CFL9	-16	1"	25.4mm	1.88"	47.6mm	80.4mm	79mm	14.3mm	1.60 lbs
Y-2020-CFL9	-20	1-1/4"	31.8mm	2.13"	54.0mm	89.2mm	93mm	14.3mm	2.01 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
