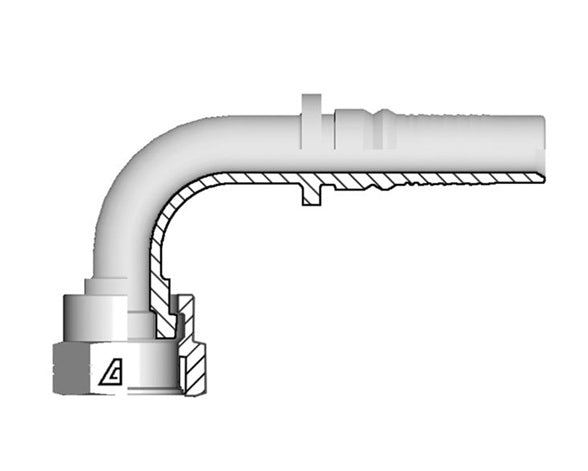

Y-1616-FO9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -16 Female ORFS Interlock x -16 Hose ID | Steel

Y-1616-FO9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -16 Female ORFS Interlock x -16 Hose ID | Steel

Save $17.01 Save $17.01
$59.53
$59.53 - $59.53
$59.53
$42.52
$42.52 - $42.52
$42.52

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female ORFS x Hose Barb
Specifications for Variant SKU: Y-1616-FO9M Kuriyama
Brand: Alfabiotech Evolution
Series: Y Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D
Drop		 Hex Dia.
CH1		 Weight
Dash Size in mm Dash Size Size(in) - TPI mm mm mm lbs/each
Y-1212-FO9M -12 3/4" 19.0mm -12 1-3/16-12 64.2mm 58mm 36mm 0.84 lbs
Y-1616-FO9M -16 1" 25.4mm -16 1-7/16-12 75.2mm 66mm 41mm 1.18 lbs
Y-2020-FO9M -20 1-1/4" 31.8mm -20 1-11/16-12 91.7mm 81mm 50mm 1.89 lbs
Y-2424-FO9M -24 1-1/2" 38.1mm -24 2-12 99.0mm 84mm 60mm 2.55 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
