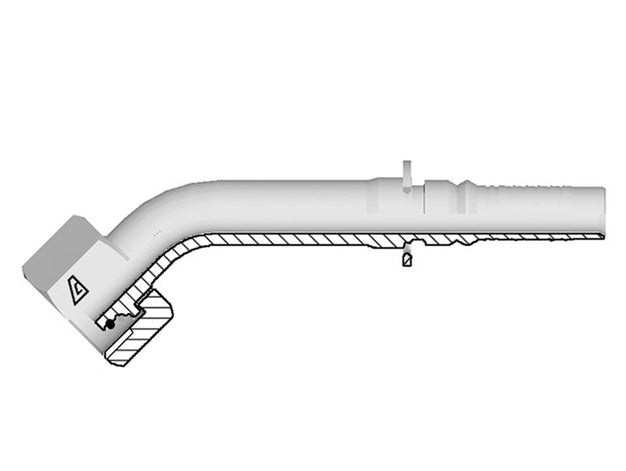

Y-1636-FM4H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Heavy | M36 Female Metric O-Ring Swivel x -16 Hose ID | Steel

Save $18.83

$65.91

$65.91 - $65.91

$65.91

$47.08

$47.08 - $47.08

$47.08

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Female Metric O-Ring Swivel x Hose Barb

DIN 3865 Heavy

Specifications for Variant SKU: Y-1636-FM4H Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	(mm) x TP (mm)	mm	mm	mm	mm	lbs/each
Y-1030-FM4H	-10	5/8"	25.9mm	M30x2	20mm	59.0mm	31.5mm	36mm	0.58 lbs
Y-1230-FM4H	-12	3/4"	19.0mm	M30x2	20mm	74.0mm	33mm	36mm	0.79 lbs
Y-1236-FM4H	-12	3/4"	19.0mm	M36x2	25mm	78.1mm	36.0mm	46mm	1.07 lbs
Y-1636-FM4H	-16	1"	25.4mm	M36x2	25mm	86.5mm	37.5mm	46mm	1.36 lbs
Y-1642-FM4H	-16	1"	25.4mm	M42x2	30mm	96.8mm	38.0mm	50mm	1.59 lbs
Y-2052-FM4H	-20	1-1/4"	38.1mm	M52x2	38mm	113.0mm	48.0mm	60mm	2.59 lbs
