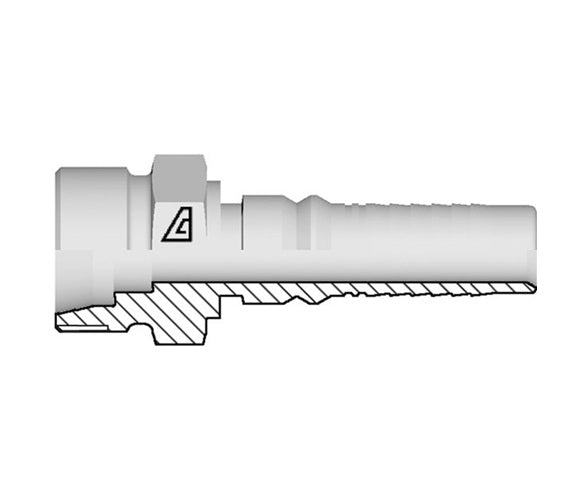

Y-1642-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M42 Male Metric 24° Seat Interlock x -16 Hose ID | Steel

Y-1642-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M42 Male Metric 24° Seat Interlock x -16 Hose ID | Steel

Save $12.77 Save $12.77
$44.69
$44.69 - $44.69
$44.69
$31.92
$31.92 - $31.92
$31.92

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male Metric 24° Seat Interlock x Hose Barb

DIN 3861 Heavy
Specifications for Variant SKU: Y-1642-MMSH Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm lbs/each
Y-1236-MMSH -12 3/4" 19.0mm M36x2 25mm 35.0mm 36mm 0.49 lbs
Y-1642-MMSH -16 1" 25.4mm M42x2 30mm 40.0mm 46mm 0.85 lbs
Y-2052-MMSH -20 1-1/4" 31.8mm M52x2 38mm 45.2mm 55mm 1.37 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
