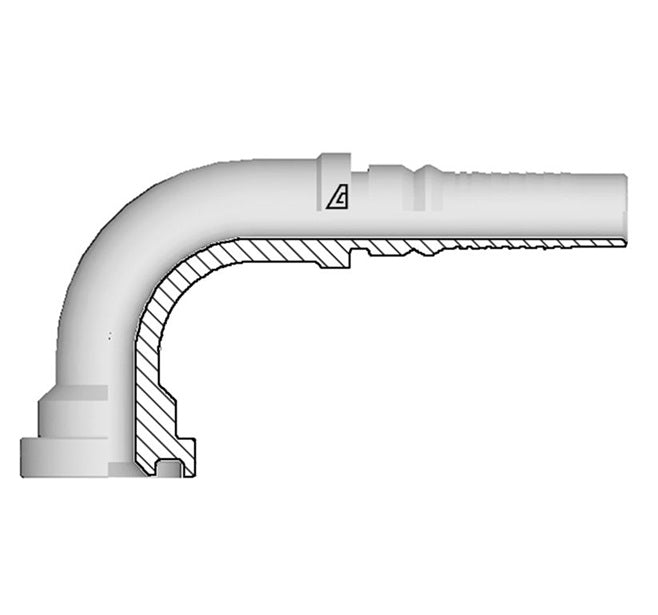

Y-2020-C619 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -20 Code 61 Flange Interlock x -20 Hose ID | Steel

Save $32.44

$113.53

$113.53 - $113.53

$113.53

$81.09

$81.09 - $81.09

$81.09

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Code 61 Flange Interlock x Hose Barb

SAE J518

Specifications for Variant SKU: Y-2020-C619 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	PSI	lbs/each
Y-1212-C619	-12	3/4"	19.0mm	1.50"	38.1mm	58.0mm	55mm	5000 PSI	0.74 lbs
Y-1616-C619	-16	1"	25.4mm	1.75"	44.5mm	72.2mm	64mm	5000 PSI	1.06 lbs
Y-2020-C619	-20	1-1/4"	31.8mm	2.00"	50.8mm	86.2mm	81mm	4000 PSI	1.61 lbs
Y-2424-C619	-24	1-1/2"	38.1mm	2.38"	60.3mm	96.0mm	93mm	3000 PSI	2.35 lbs
Y-3232-C619	-32	2"	50.8mm	2.81"	71.4mm	134.4mm	130.0mm	3000 PSI	4.72 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
