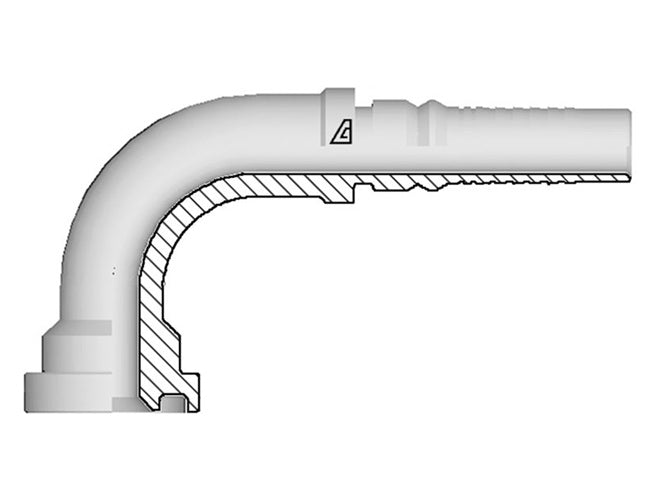

Y-2424-C629 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -24 Code 62 Flange Interlock x -24 Hose ID | Steel

Save $54.96

$192.35

$192.35 - $192.35

$192.35

$137.39

$137.39 - $137.39

$137.39

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Code 62 Flange Interlock x Hose Barb

SAE J518

Specifications for Variant SKU: Y-2424-C629 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Code 62 Flange, 1-1/2in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	PSI	lbs/each
Y-1212-C629	-12	3/4"	19.0mm	1.63"	41.3mm	61.2mm	64.0mm	6000 PSI	0.80 lbs
Y-1616-C629	-16	1"	25.4mm	1.88"	47.6mm	70.4mm	74.0mm	6000 PSI	1.54 lbs
Y-2020-C629	-20	1-1/4"	31.8mm	2.13"	54.0mm	88.2mm	91.0mm	6000 PSI	2.47 lbs
Y-2424-C629	-24	1-1/2"	38.1mm	2.50"	63.5mm	106.3mm	109.0mm	6000 PSI	2.69 lbs
Y-3232-C629	-32	2"	50.8mm	3.13"	79.4mm	149.0mm	138.5mm	6000 PSI	6.17 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
